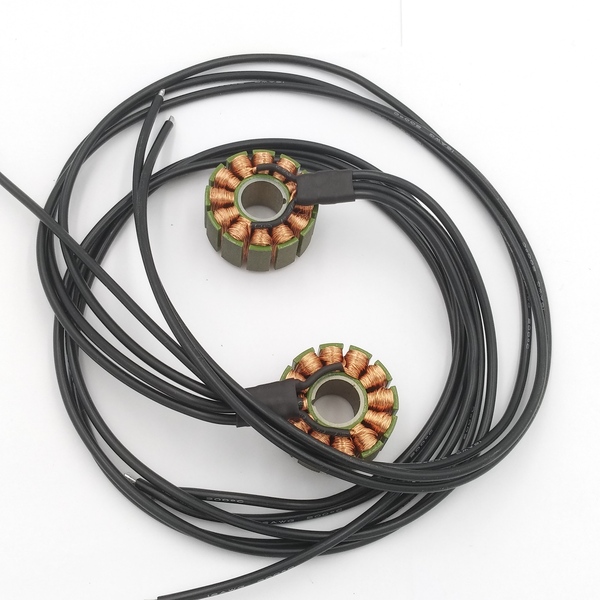

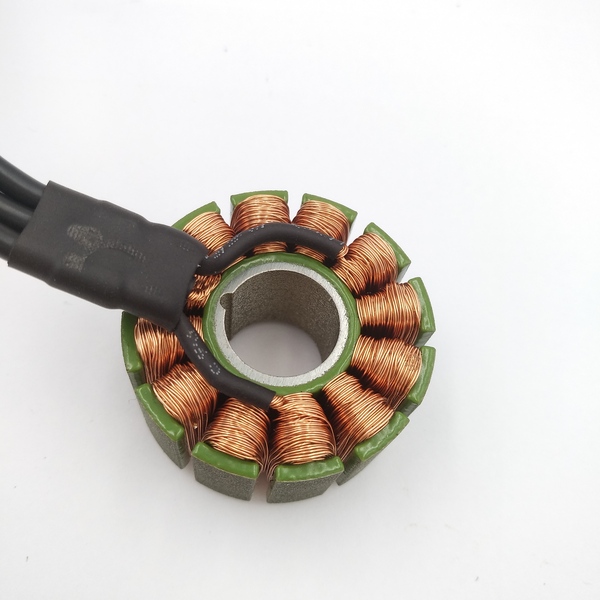

35.1mm Stator Winding

35.1*13*12*0.2mm Motor Stator Winding Services

Winding Methods： 1 Station Automatic Machine Winding

Stator Spec.: 35.1*13*12Slots*16mm

Silicon Steel Thickness: 0.2mm

Slots Insulation Method: Epoxy Powder Coating F Class

Magnet Wire Diameter: 0.23mm

Winding Turns: 35 turns

Winding Type： D type

Wire Threads： AWG16 Soft Silicon Wire

Tin Soldering： Yes

Coil Varnish Coating： Yes

Wire Protection： Heat Shrink Tube Package
