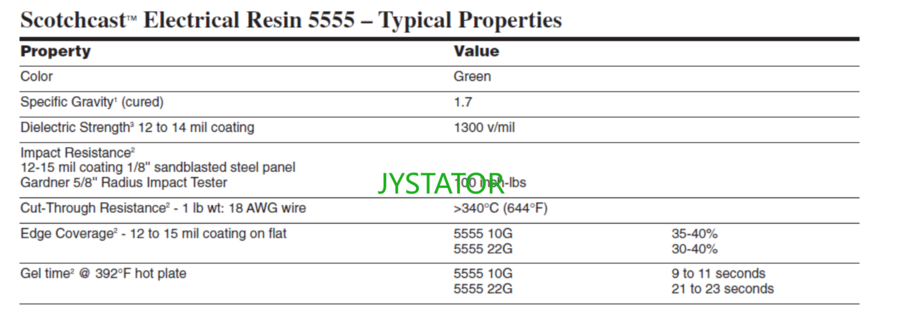

3M Scotchcast 5555 Stator Coating
3M™ Scotchcast™ Electrical Resin 5555 is a one-part, green pigmented, rapid heat curing powder coating. It is designed
to provide a continuous, tough moisture and chemical resistant dielectric coating for motor stators, armatures, and transformers.
Electrical resin 5555 is manufactured by a fusion blend process, insuring that each individual particle of powder contains all the components necessary to effect a complete cure and attain stated performance properties.
Resin 5555 can be applied via cold electrostatic fluid bed, hot venturi spray or hot fluid bed dip. When applied electrostatically to a cold parts inductionheat is recommended to melt and flow the powder to a tough, moisture and chemical resistant dielectric coating for various electrical devices and motor insulation.
When applied to a hot part the resin melts, flows to a controlled extent, then cures, bonding to the substrate and coalescing into a smooth, continuous, essentially uniform, thick dielectric coating. Resin 5555 has two gel times in order to accommodate those applications that need slightly higher flow, or for application equipment that requires rapid curing.

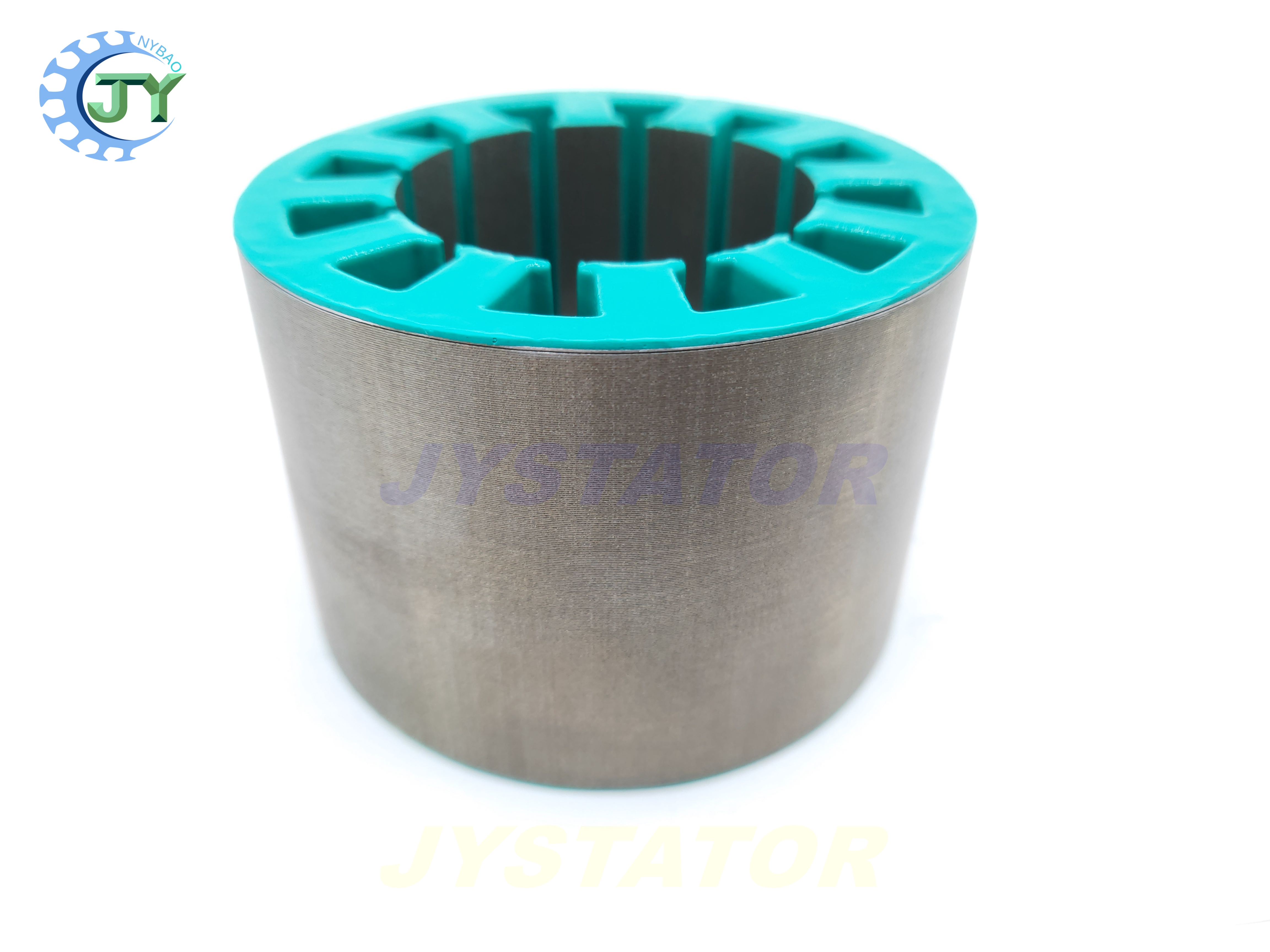

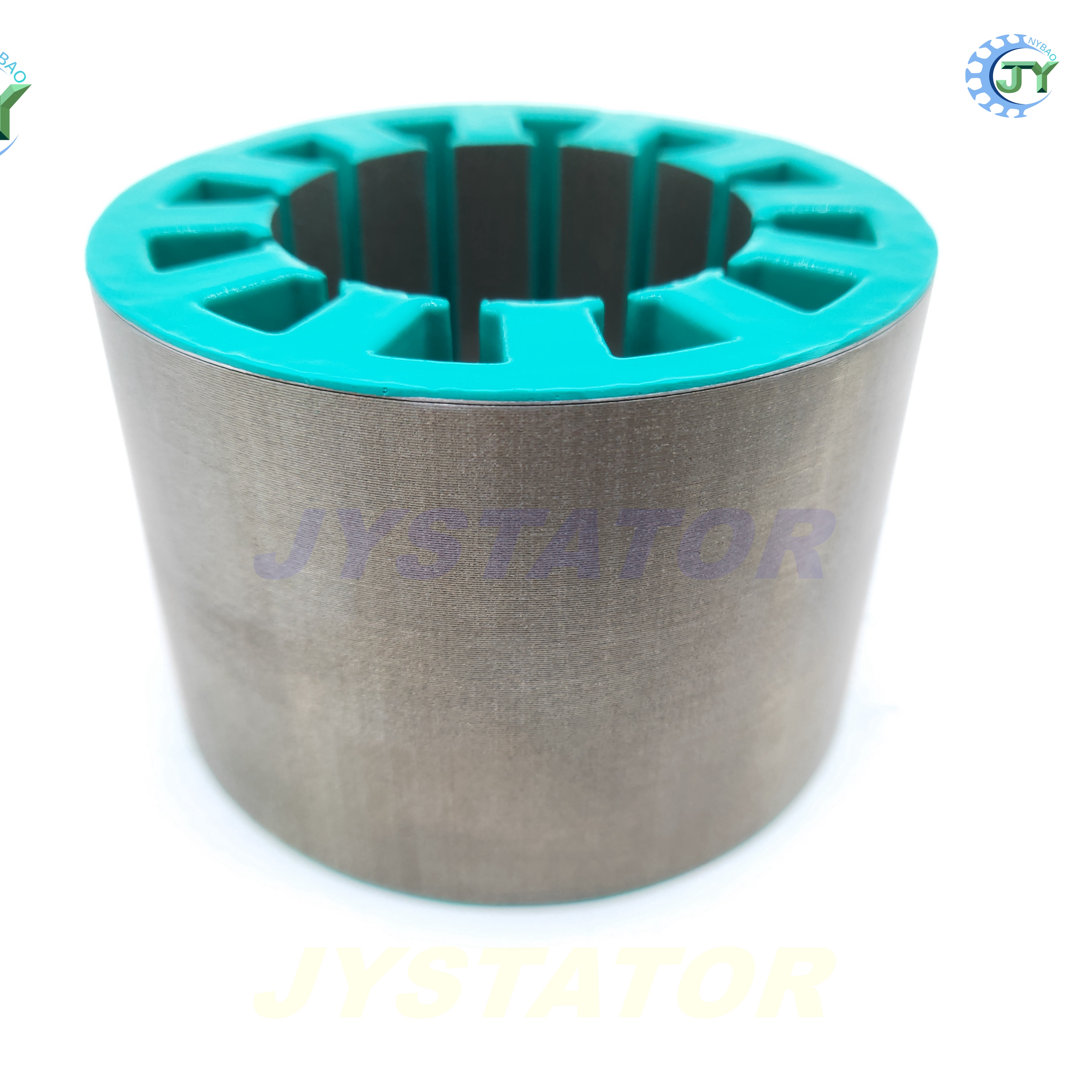

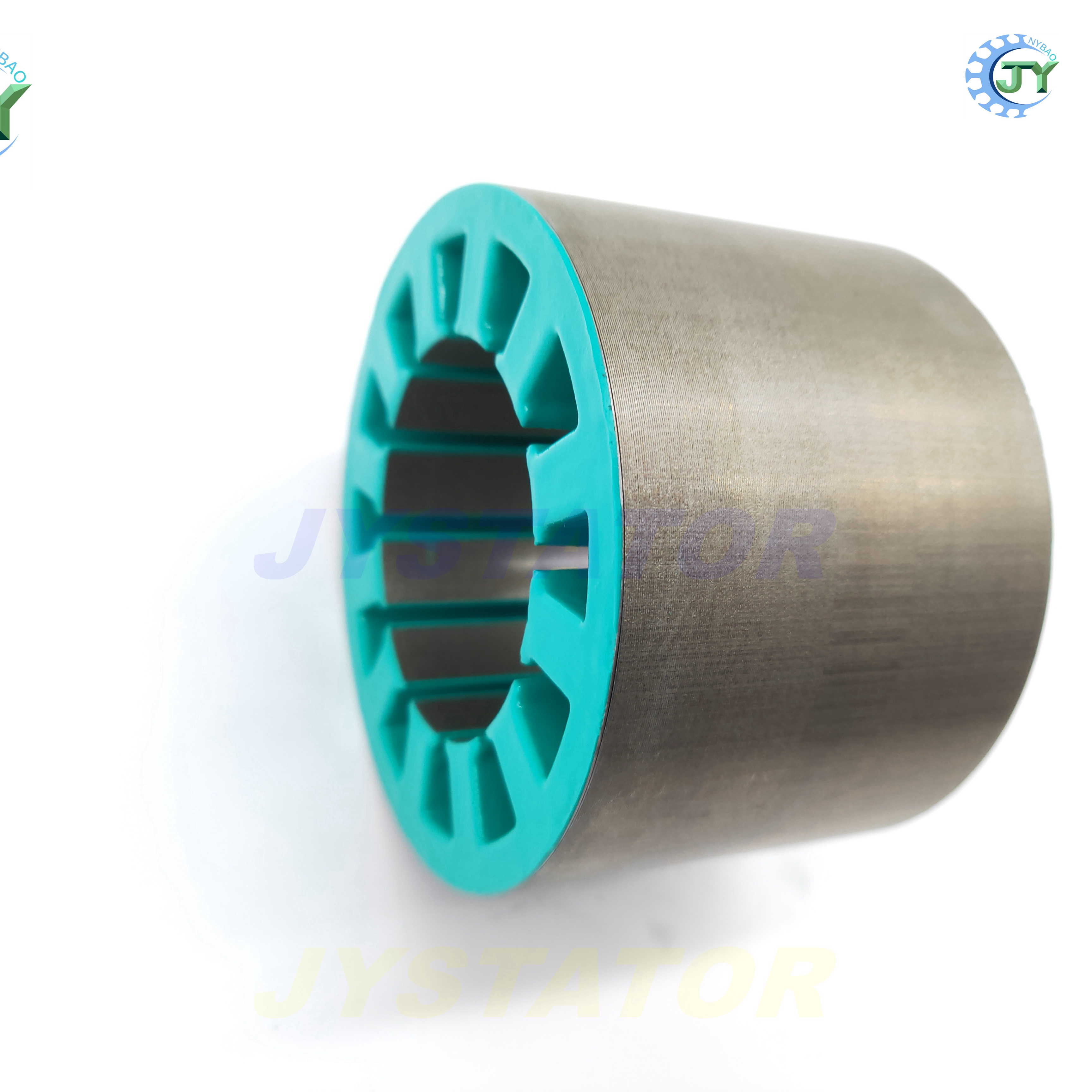

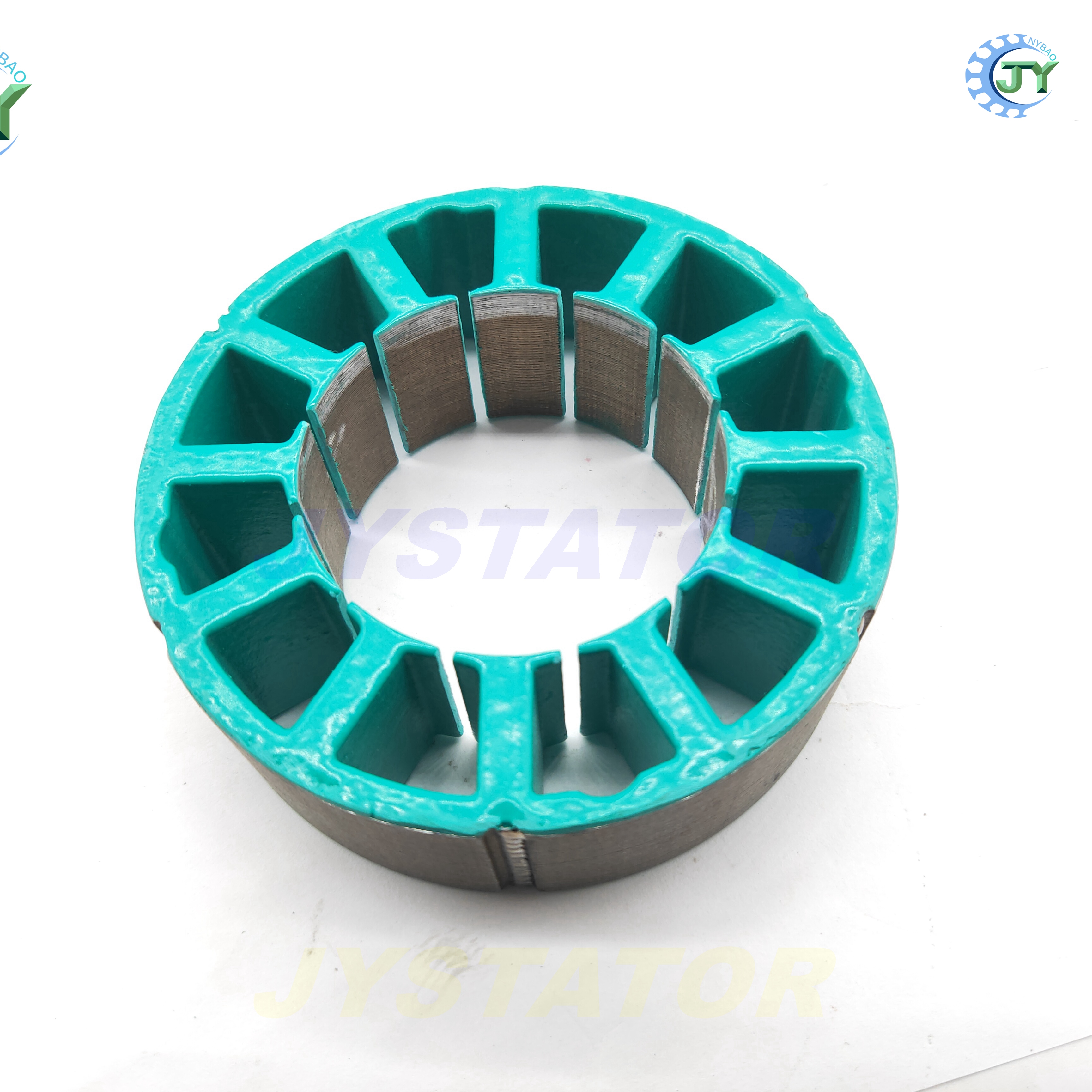

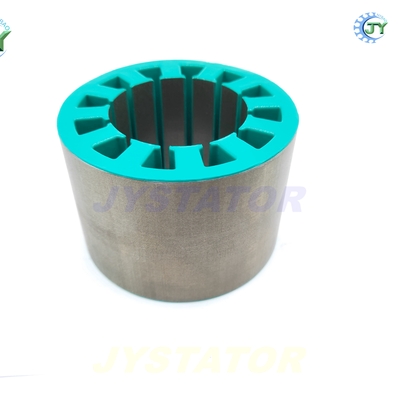

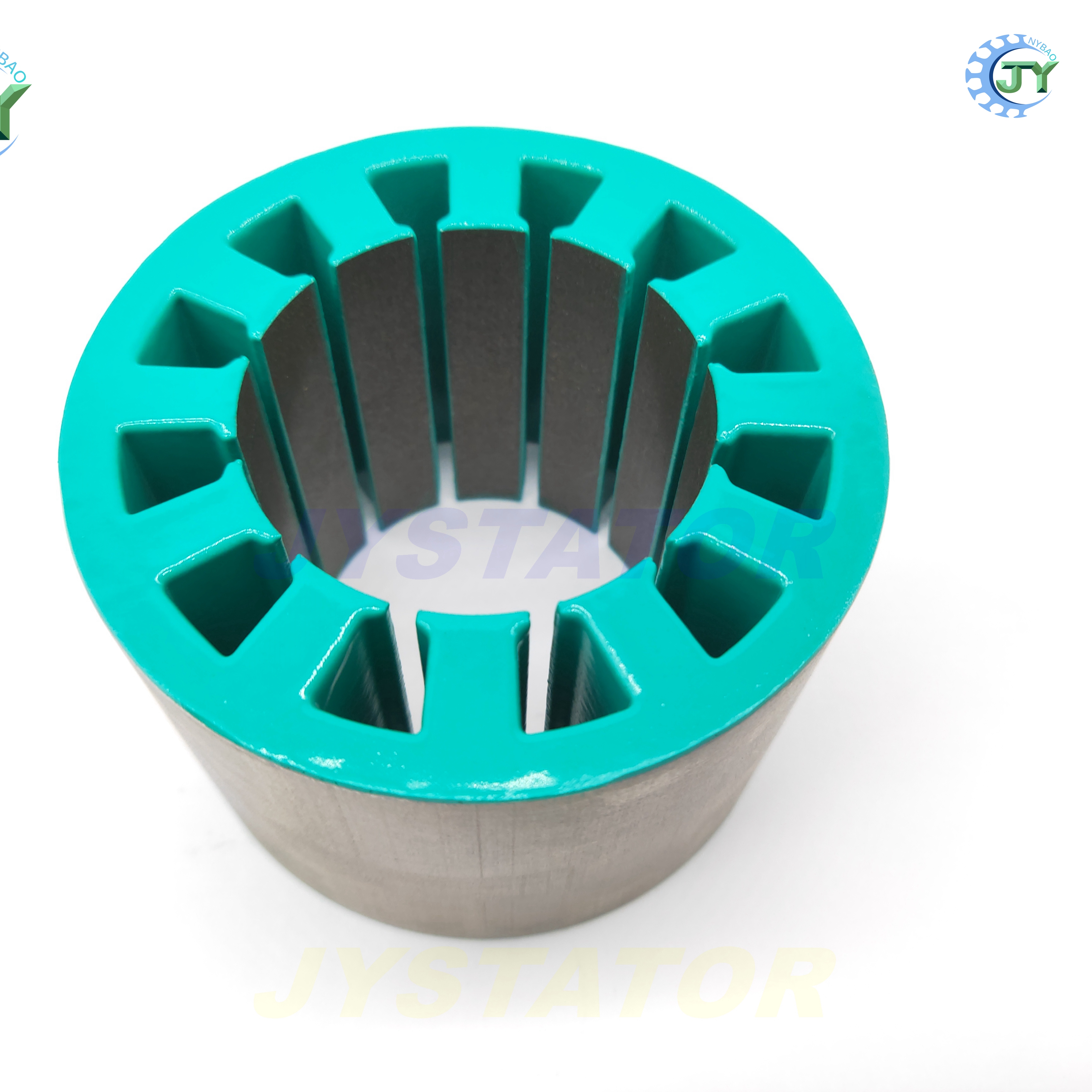

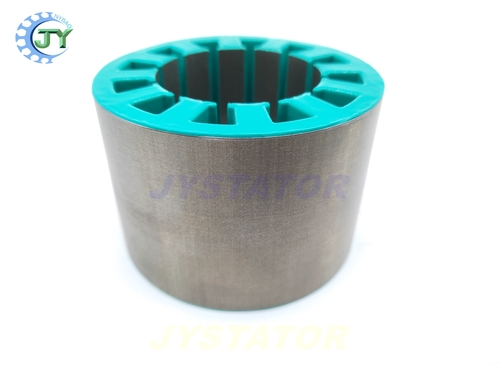

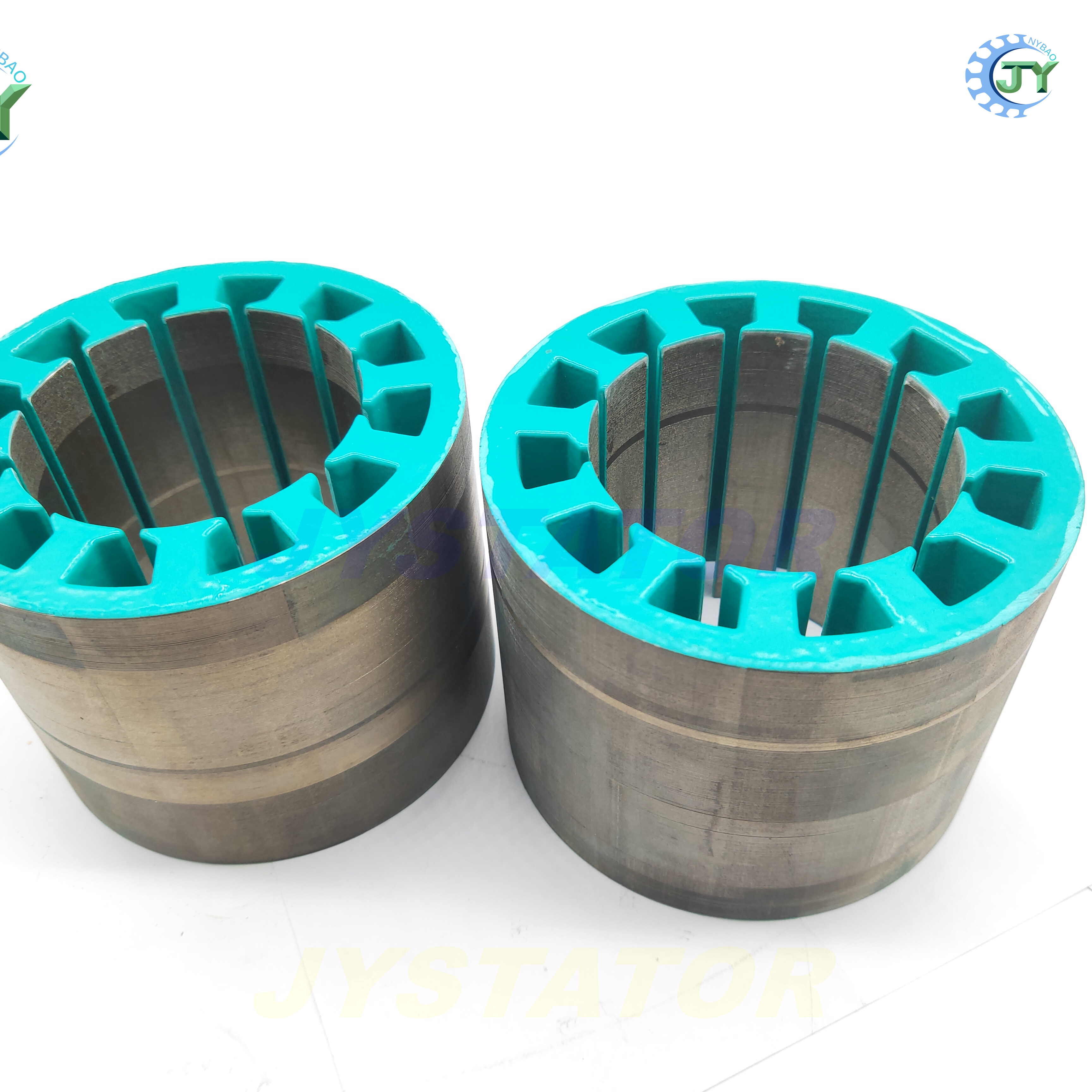

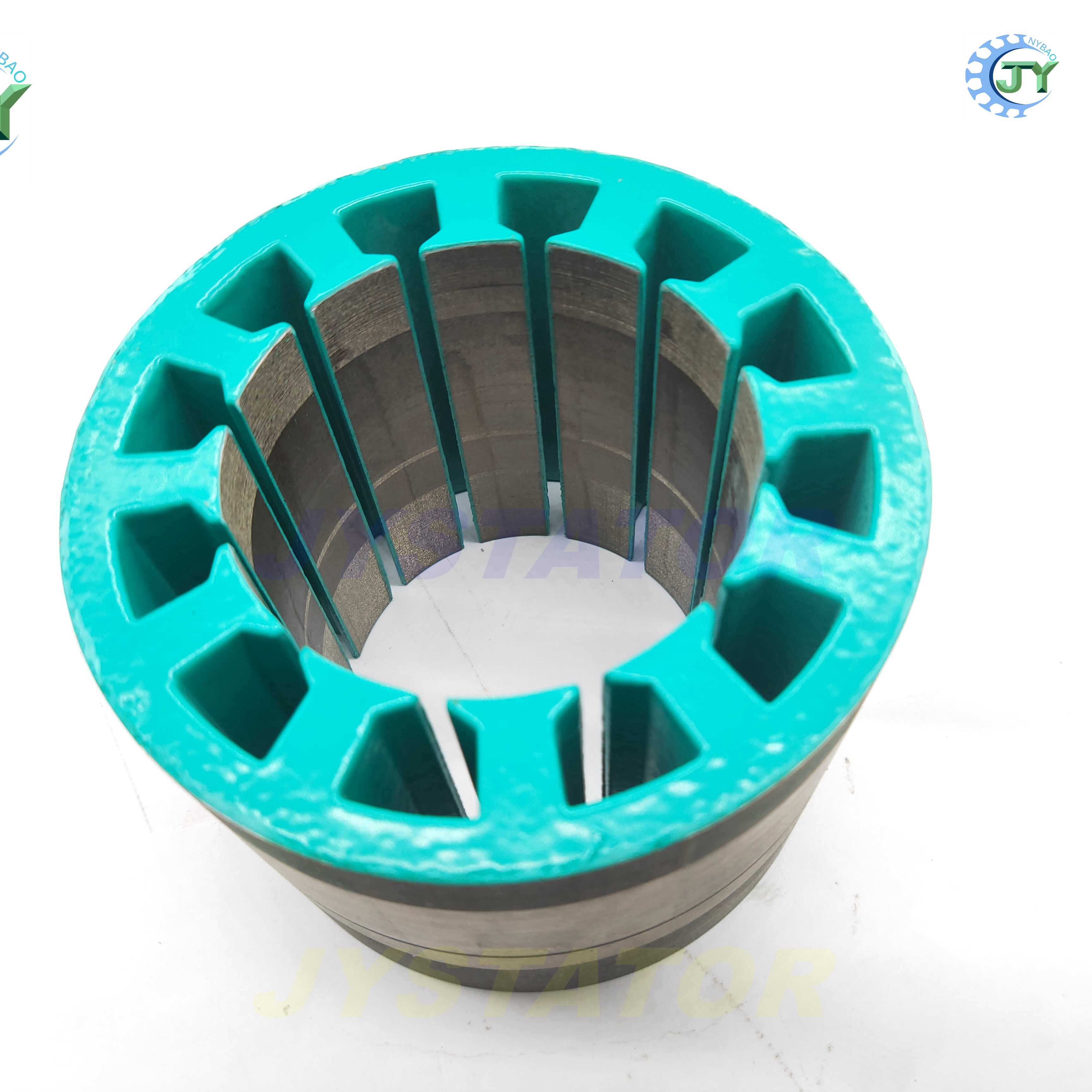

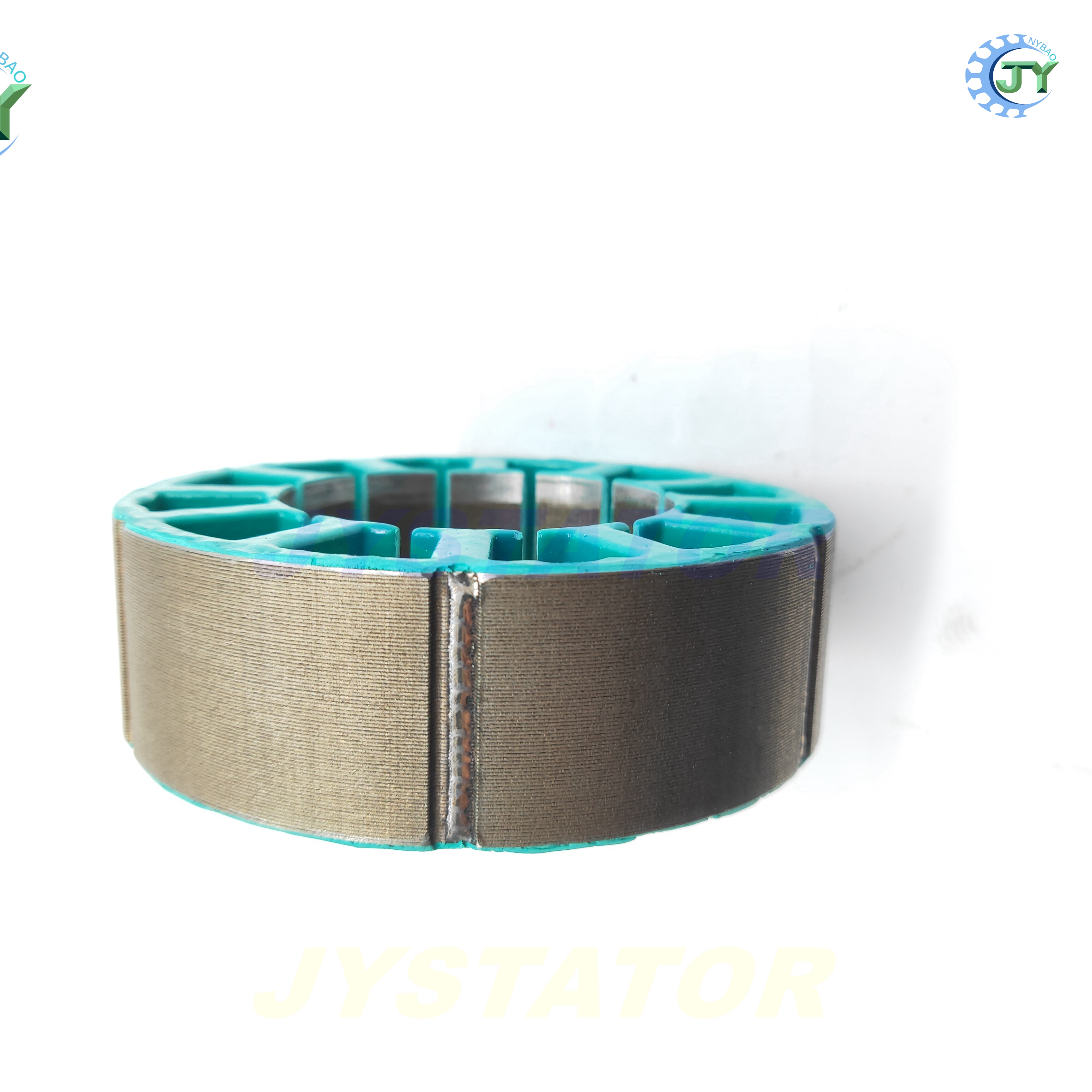

JYSTATOR has over 10 years of stator coating and motor insulation experiences for stator production; it can be coated with electrostatic machine for high efficiency or thermal coating technology with flexible stator coating shape; the height of the coating layer can be customized according to your needs and motor insulation hi-pot testing can reach 1500V AC;
