35 Series Motor Stator Core — 35.1×13×12 Slots × 0.2mm Silicon Steel
Lamination & Stamping

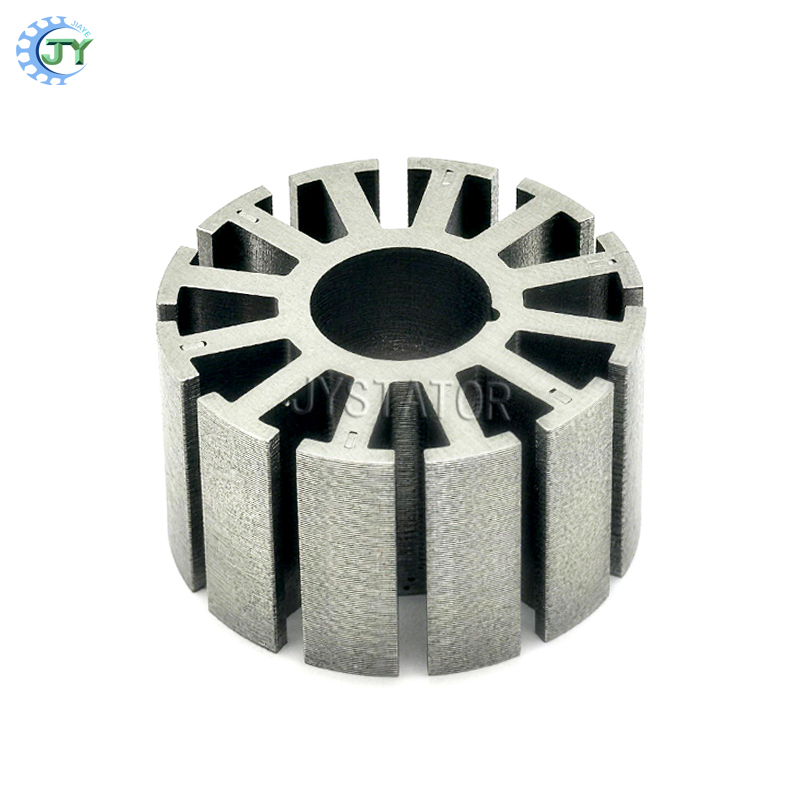

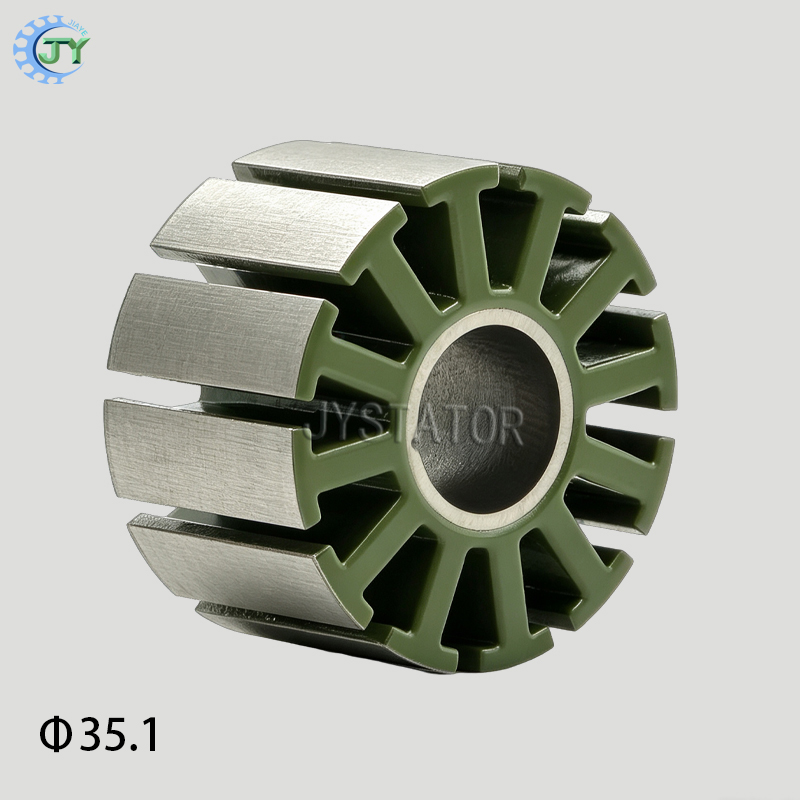

This 3520 stator lamination is manufactured from low eddy current loss 0.2mm silicon steel with a 35.1mm outer diameter, specifically engineered for 35 series drone motors. The stator height is fully customizable to meet your application requirements. Below are typical height configurations widely used in the drone industry:
FPV Motors: 3510 / 3515/ 3530
Fixed-Wing Drone (Long Shaft): 3515 / 3520 / 3530/ 3535

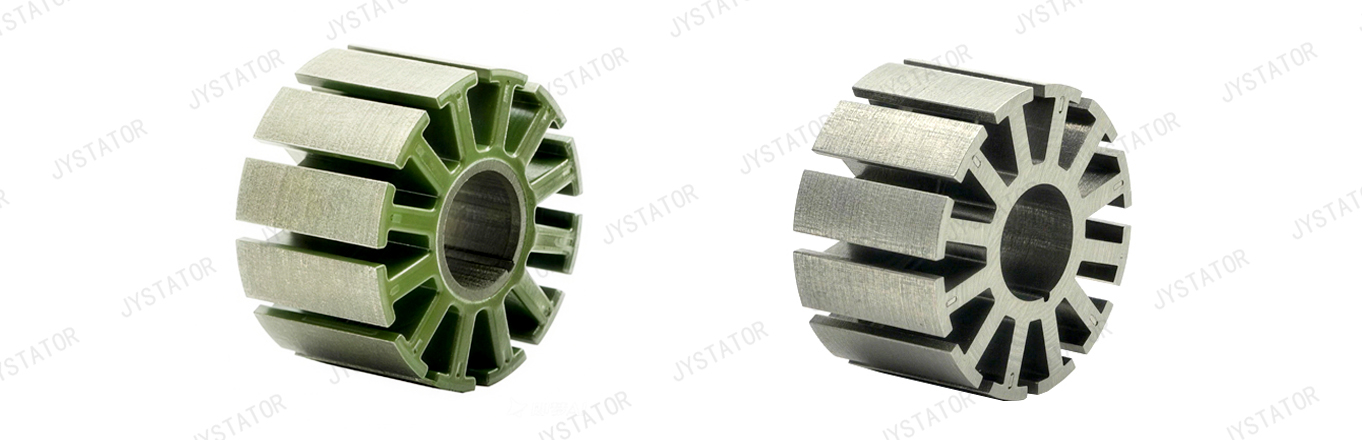

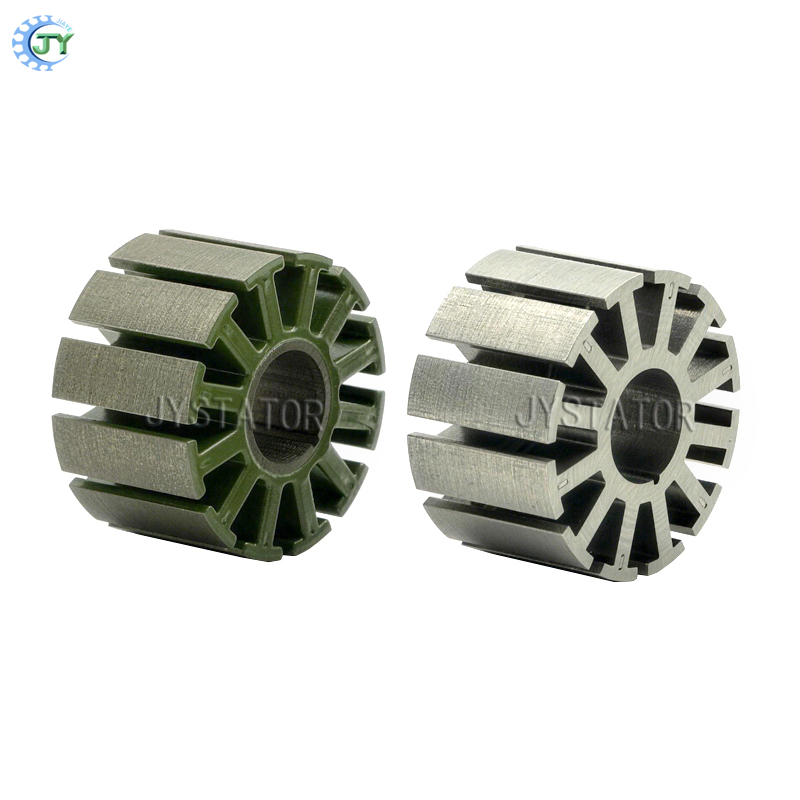

3510 Drone Stator Epoxy Coating

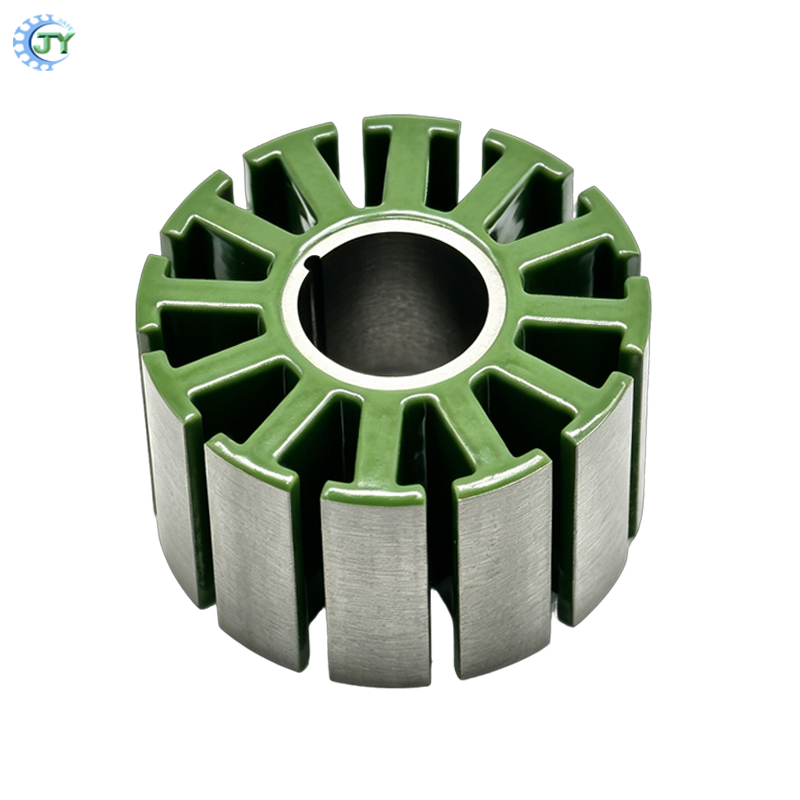

All stators are coated using H-Class 180℃ electrostatic epoxy powder coating technology, which is especially well-suited for low-voltage motors in drone and UAV applications. The electrostatic process ensures uniform coverage across the lamination surface, providing reliable insulation and enhanced corrosion resistance.
To guarantee consistent quality, we apply 100% Hi-Pot testing on every FPV stator before shipment, ensuring full compliance with insulation performance standards.

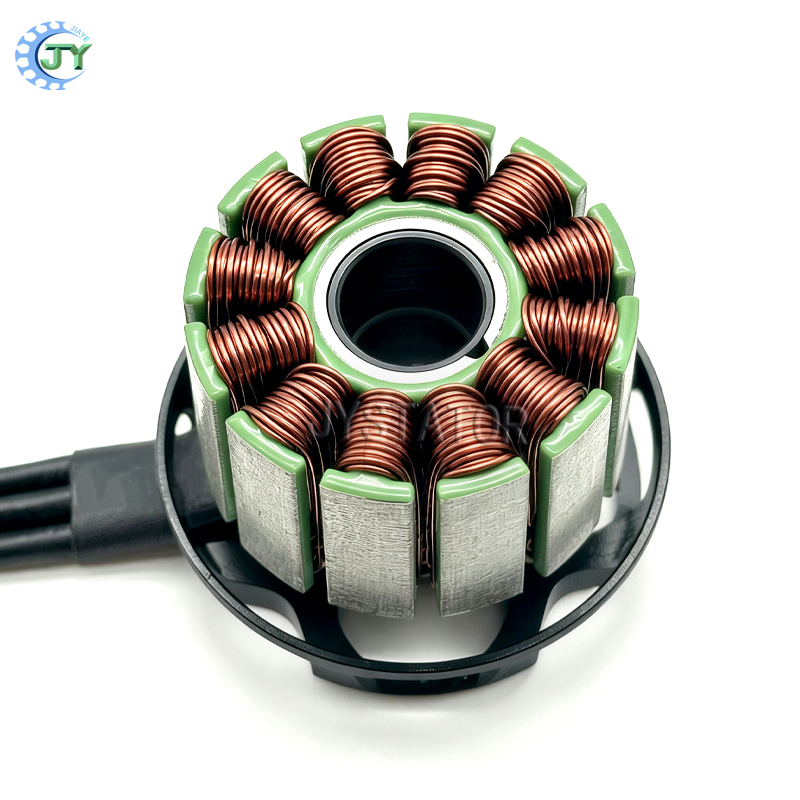

3510 Drone Stator Winding
We offer fully custom winding services to match your motor design specifications. Our standard KV options for the 35 series include KV300, KV380, KV580, and KV750, and we also accept custom winding with any KV value according to your specific performance requirements.

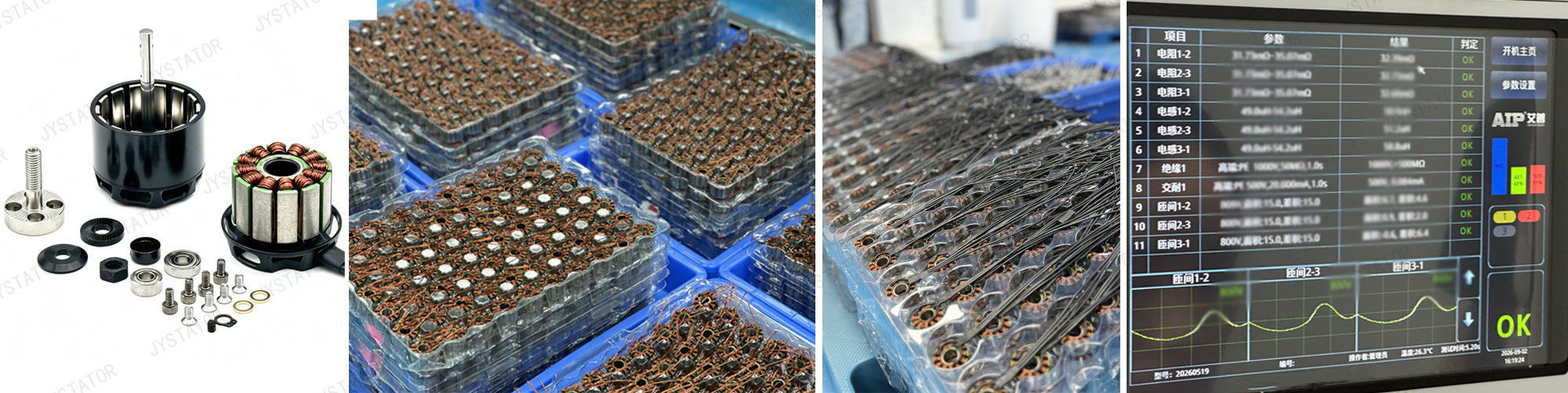

Every 3510 stator and 35 series stator undergoes 100% electrical performance testing, including:
Hi-Pot Testing— verifies insulation integrity
3-Phase Resistance Testing— ensures winding consistency
Surge Waveform Testing— detects turn-to-turn short circuits
Why Choose JYSTATOR for 35 Series Stators?

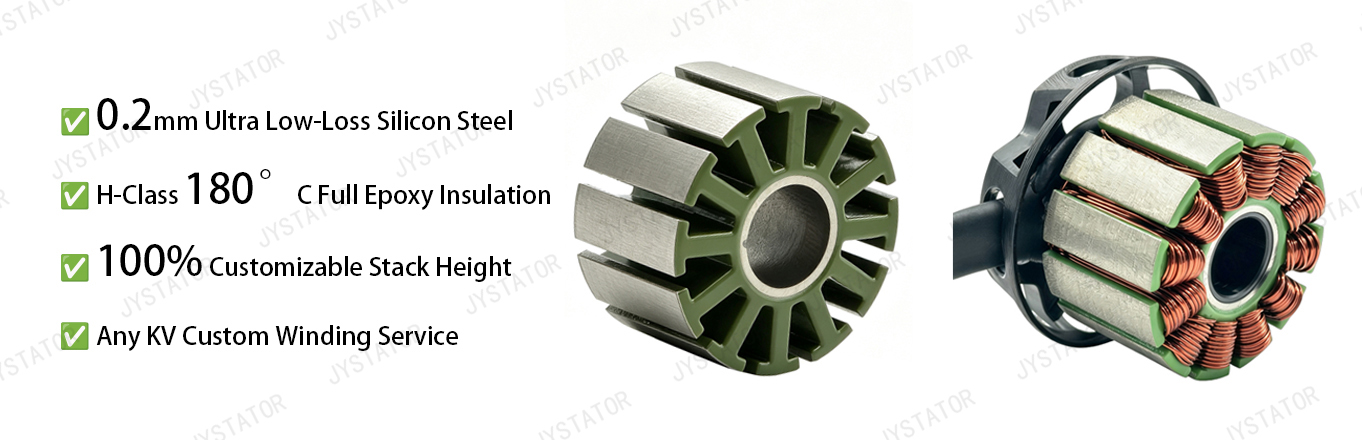

Low Eddy Current Loss Material — maximizes motor efficiency, critical for drone flight time
Customizable Stator Height— tailored to your motor frame and performance needs
Full Custom Winding— any KV value, any winding configuration
100% Quality Inspection— every stator tested before delivery
Proven Drone & UAV Expertise — trusted by drone motor manufacturers worldwide
