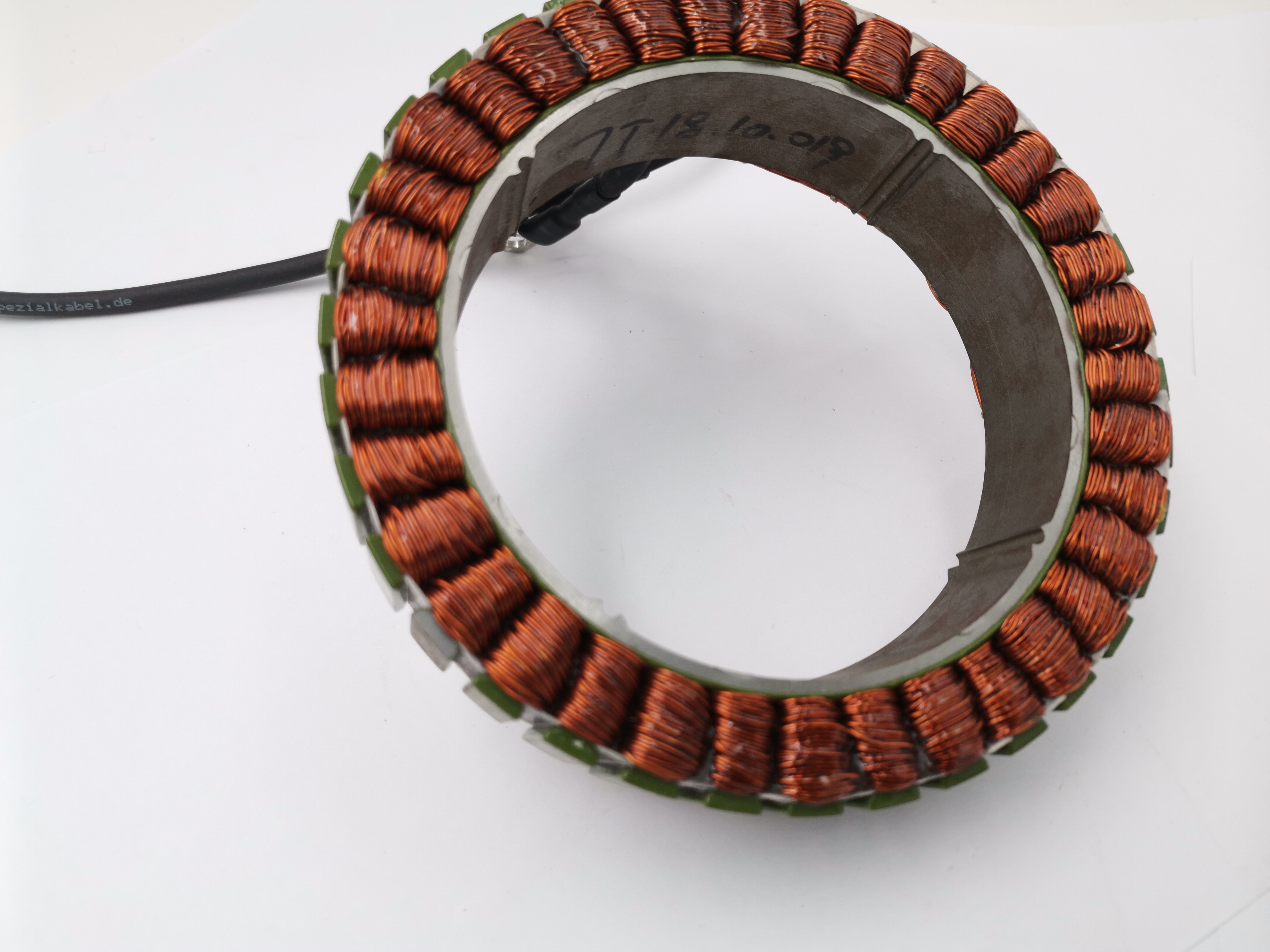

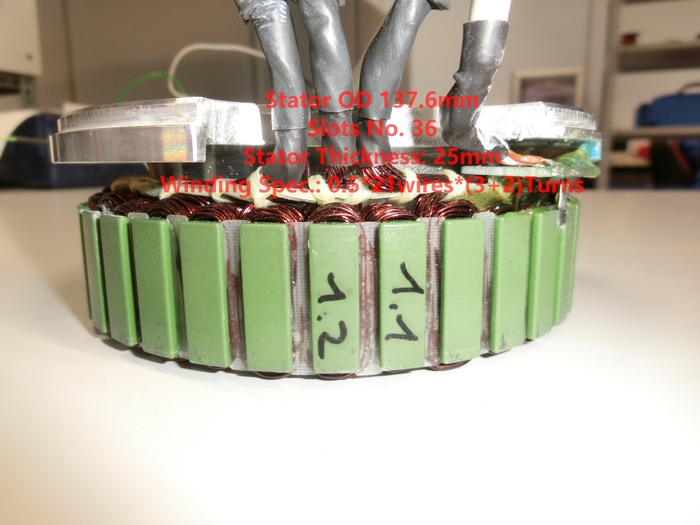

137.6*100*36slots*0.2*25mm Winding
Service Type: Customs Coil Winding
Stator: from ready-made stamping mold
Winding method: Manual winding

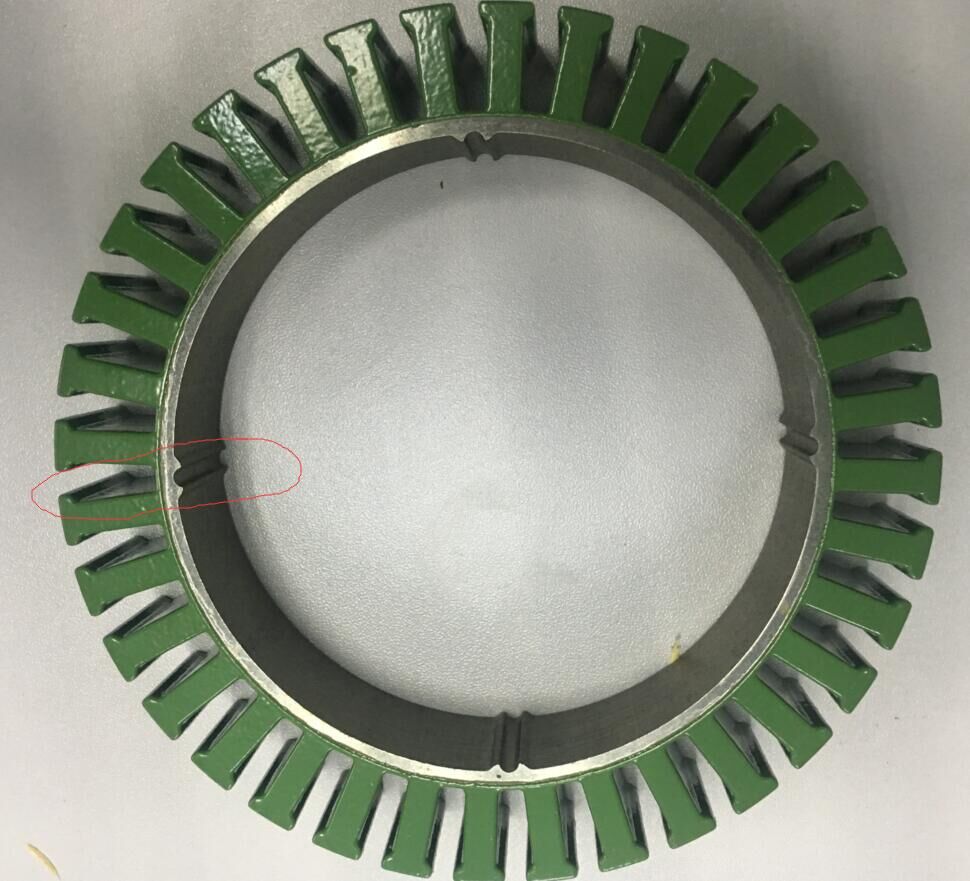

Stator dimension: 137.6*100*36slots*0.2*30
Stator type: Outer Stator

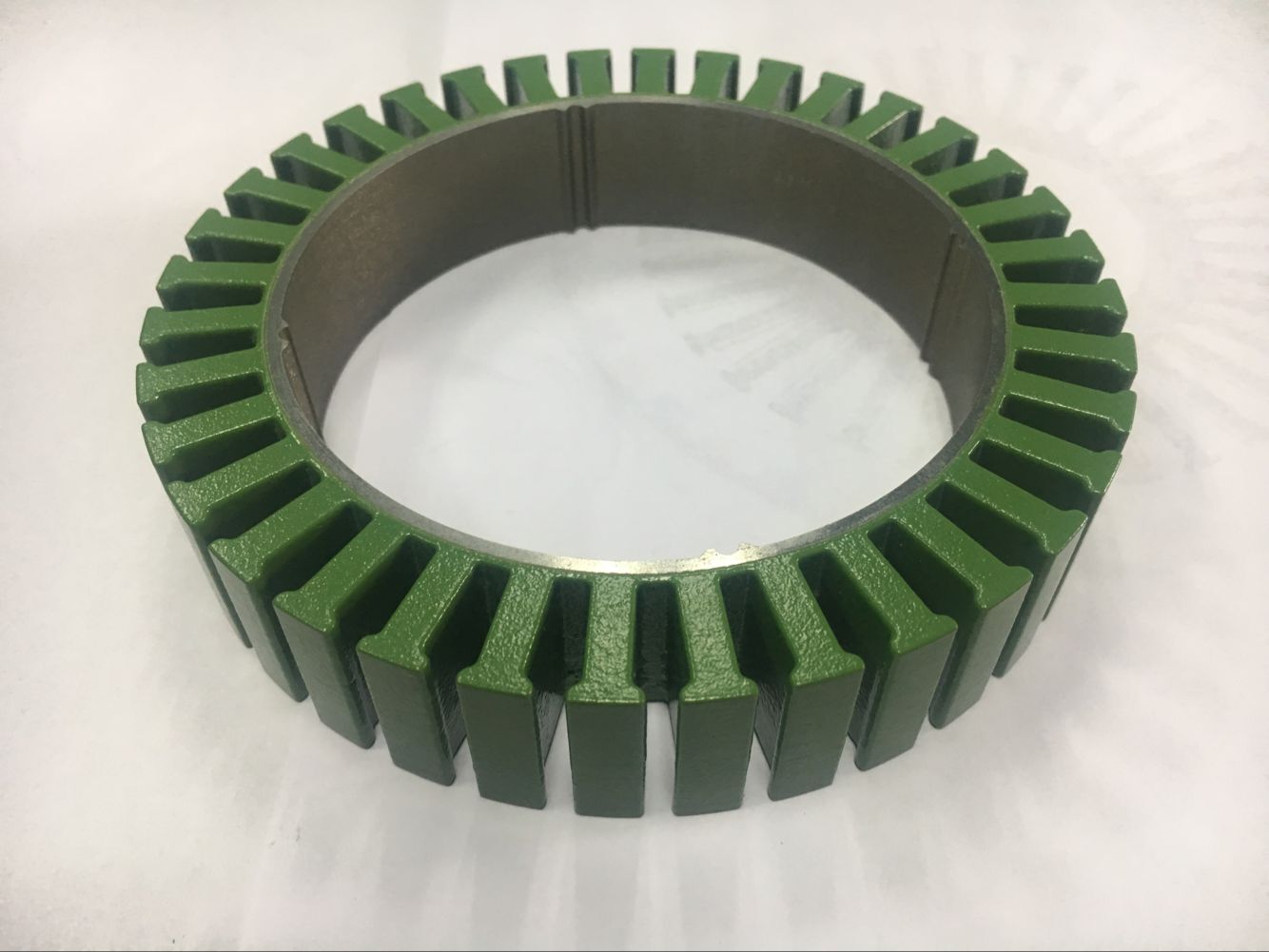

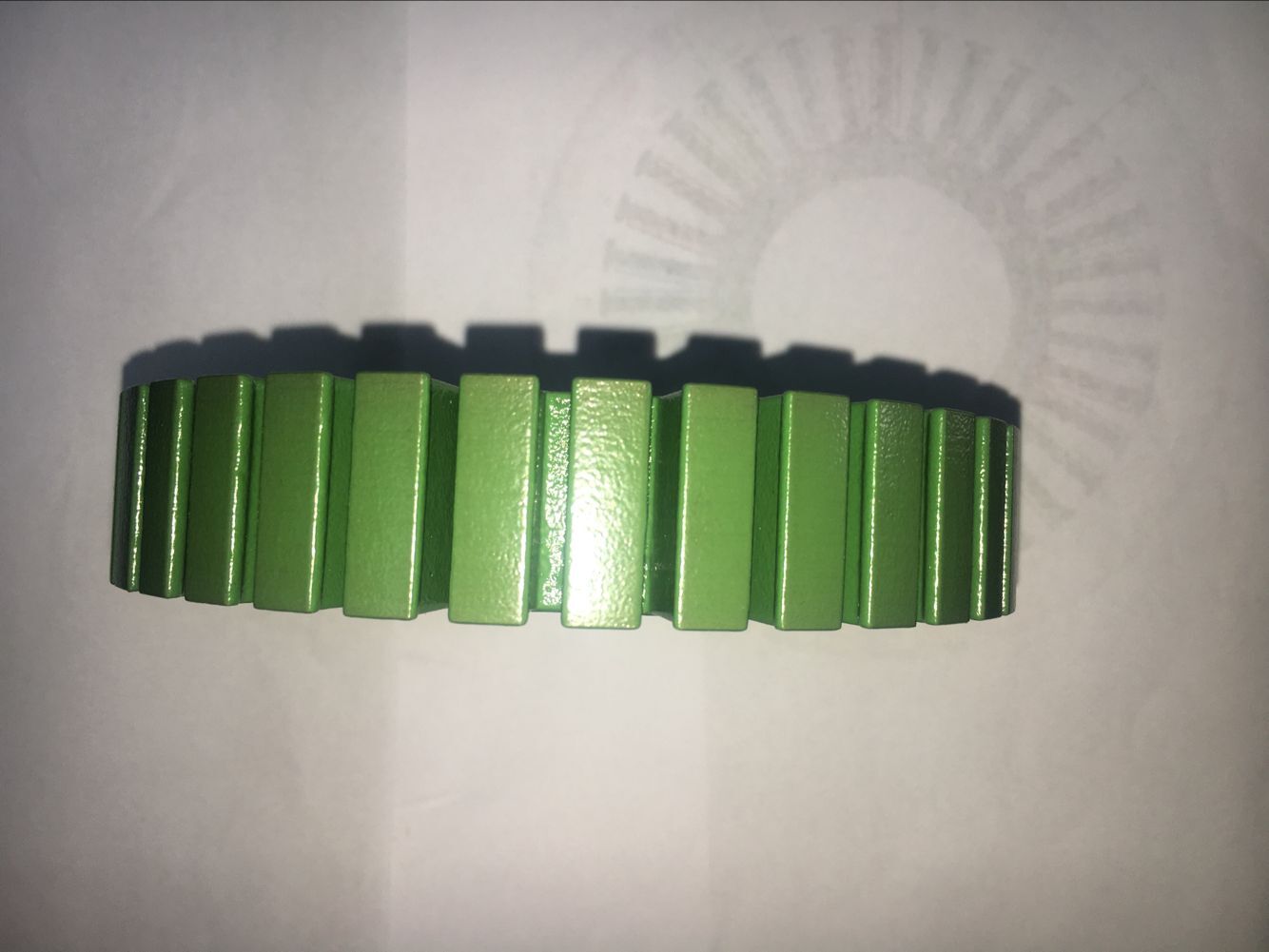

Slots Insulation: Epoxy Powder Coating
Enameled Wire type: 180 ℃ Double insulation layer coated 1EAIW.

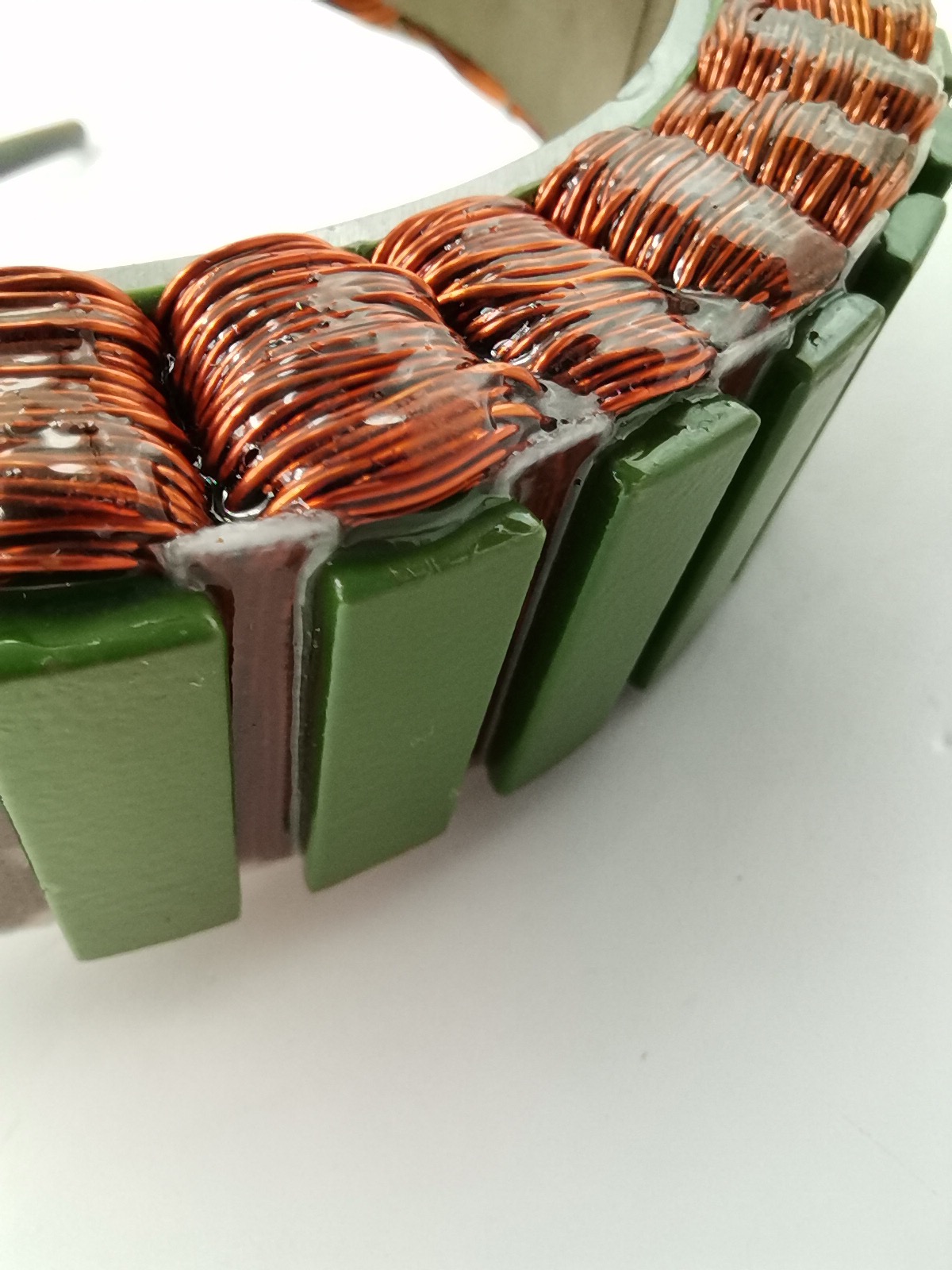

Varnish epoxy type: 180 ℃ Varnish epoxy

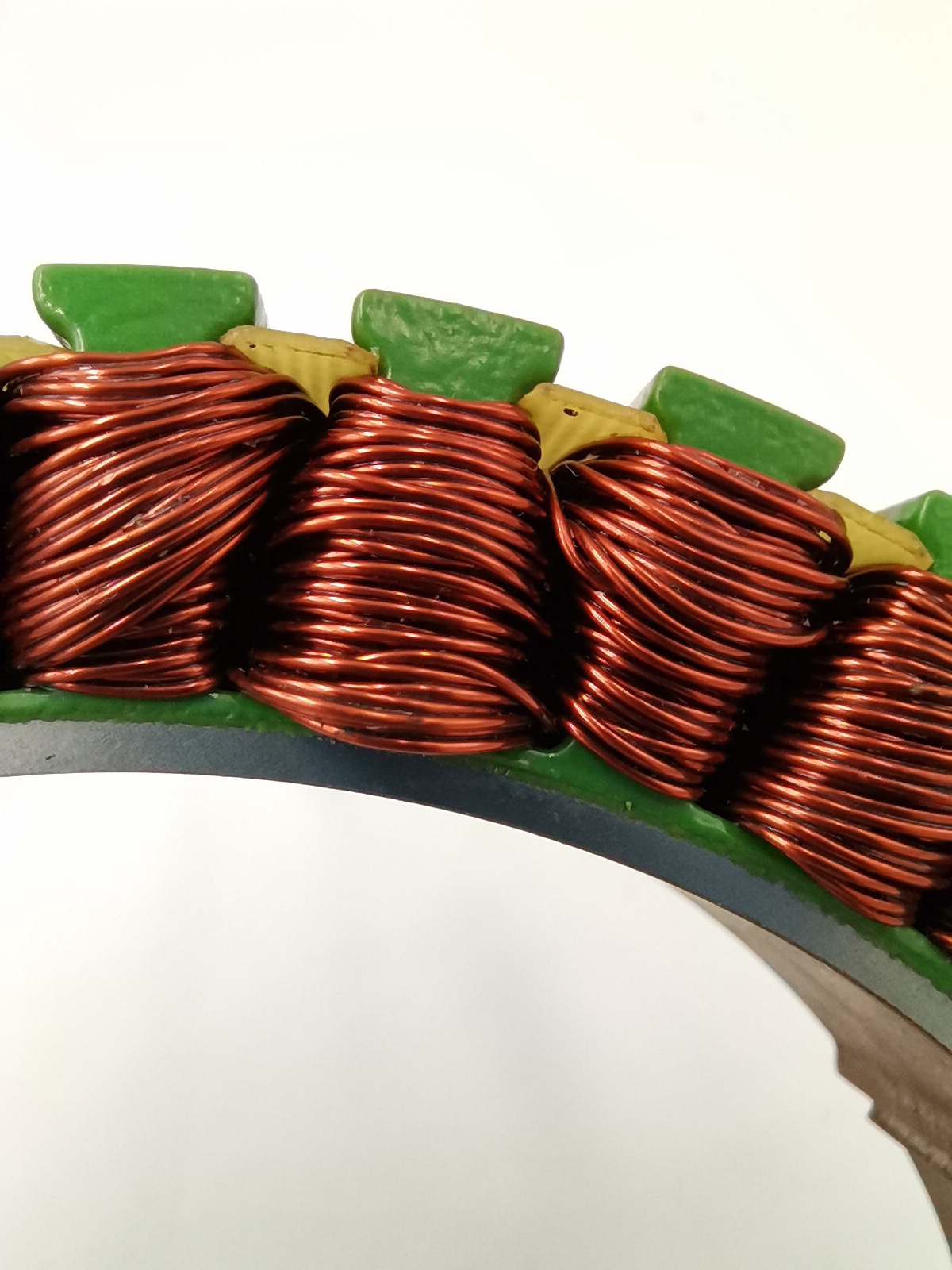

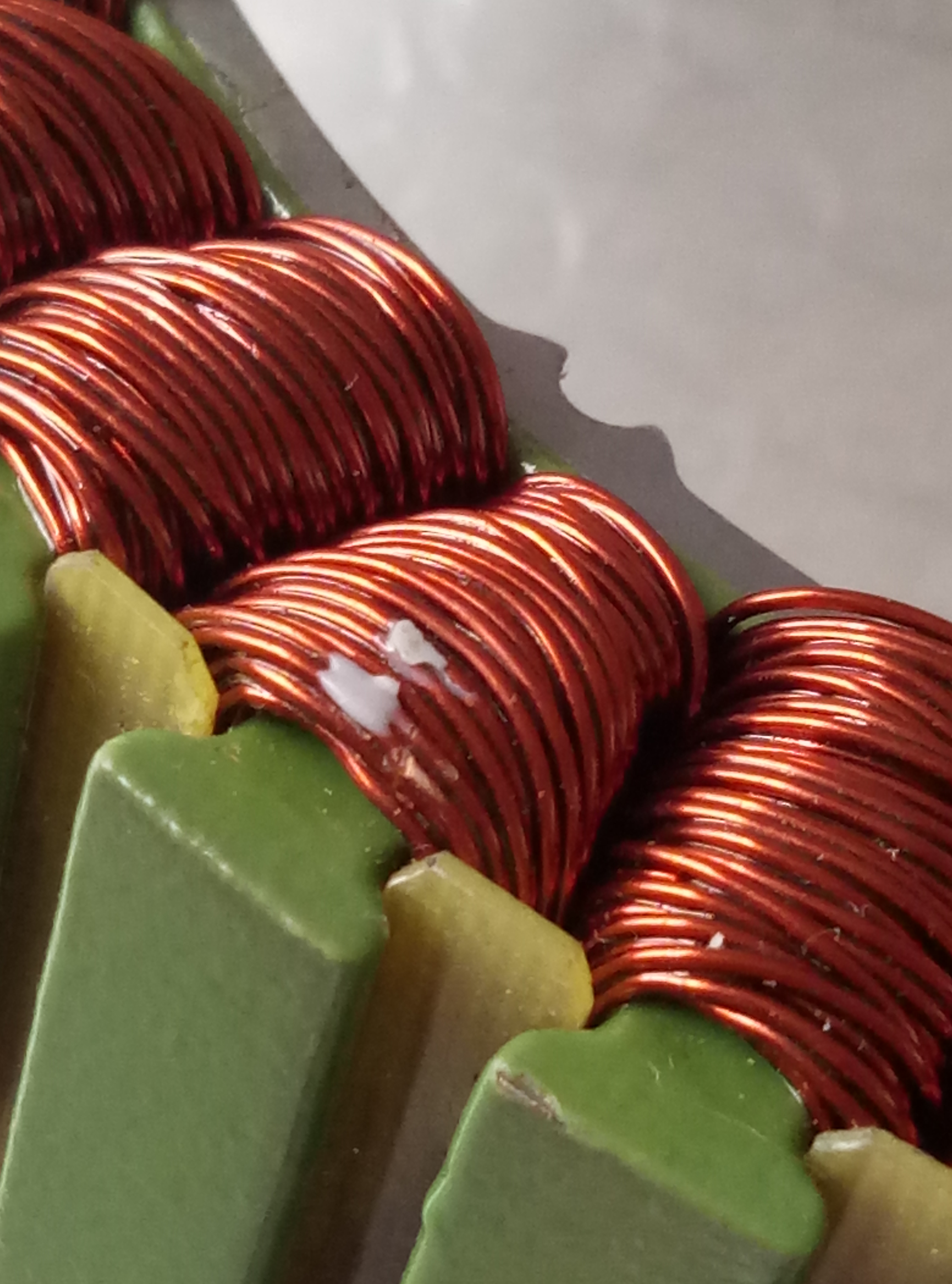

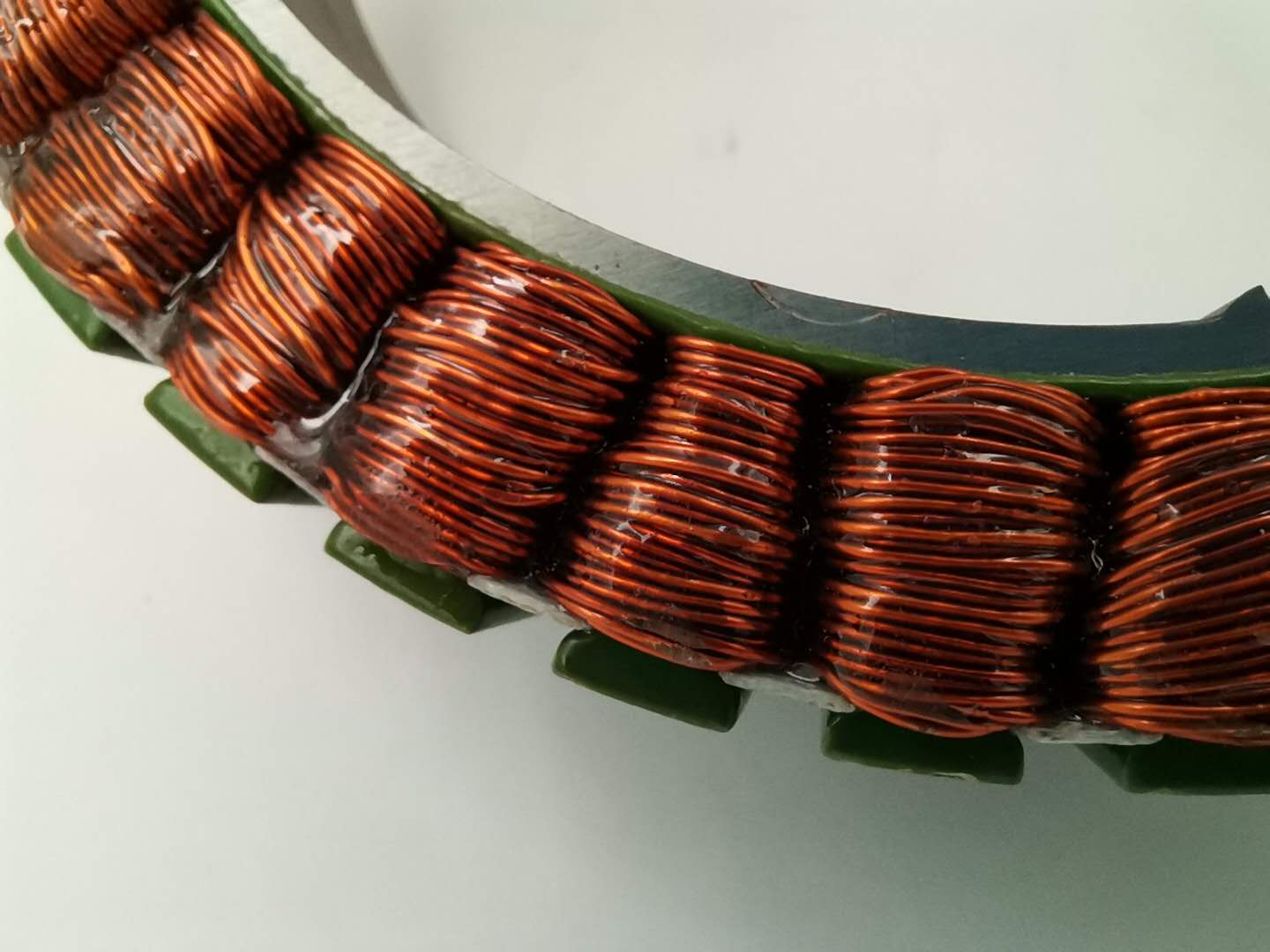

Winding Spec.: 0.9mm*5Wires*7 turns Y type

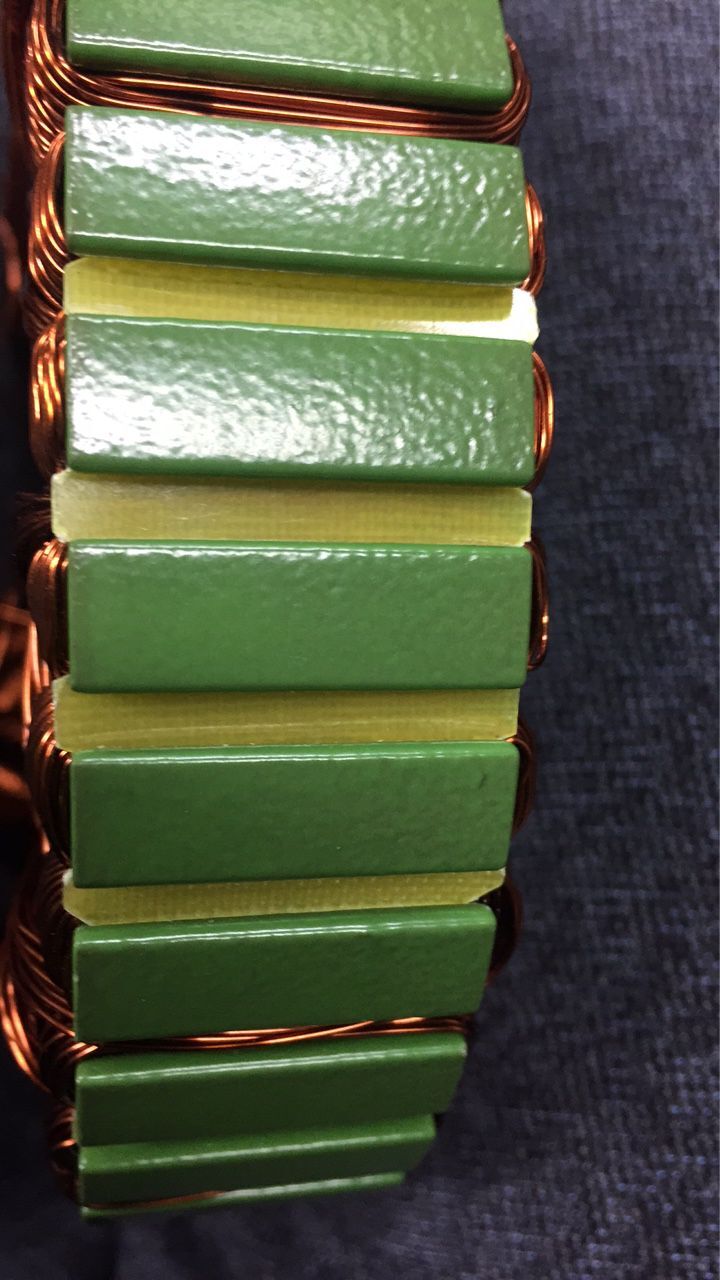

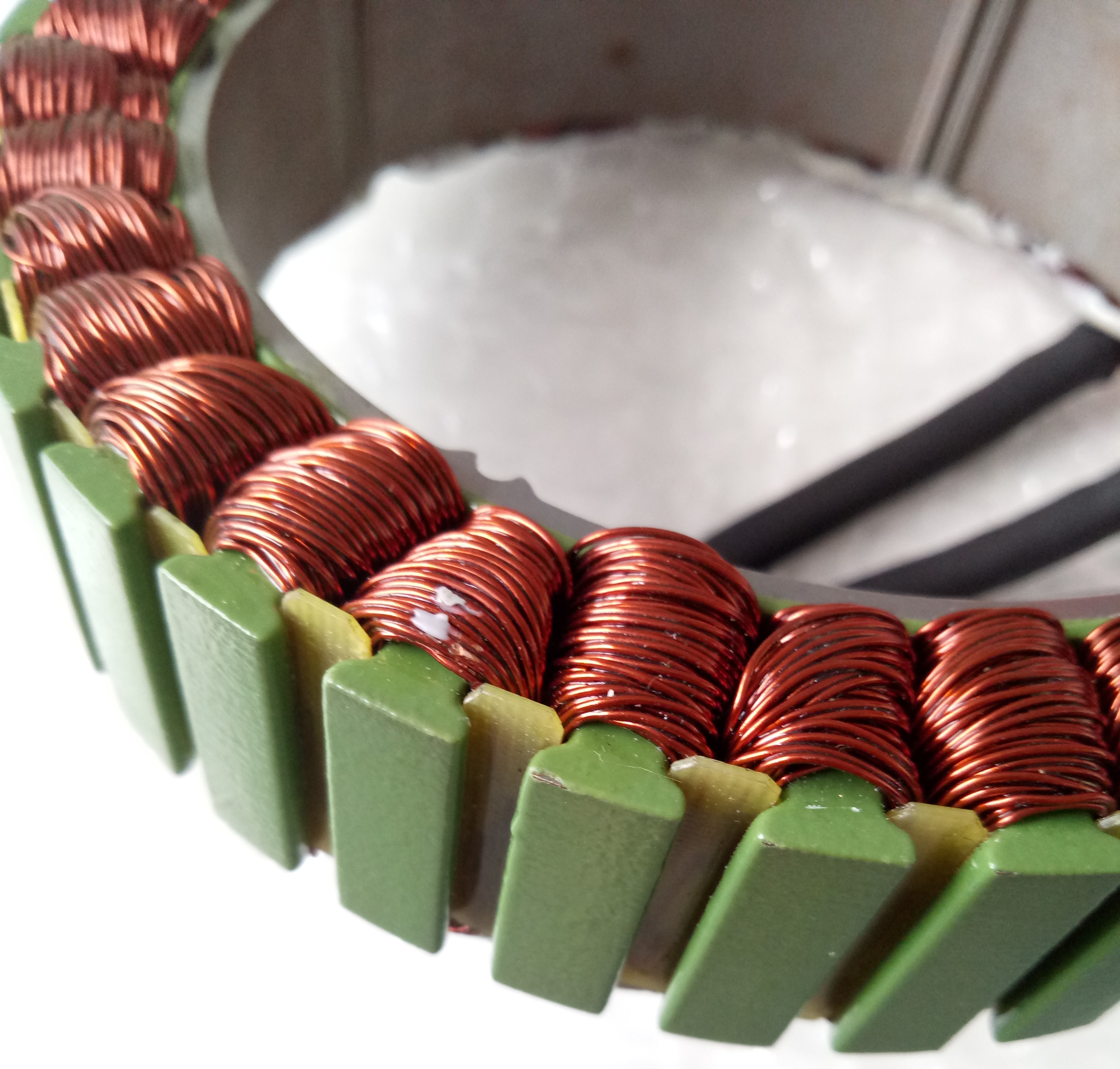

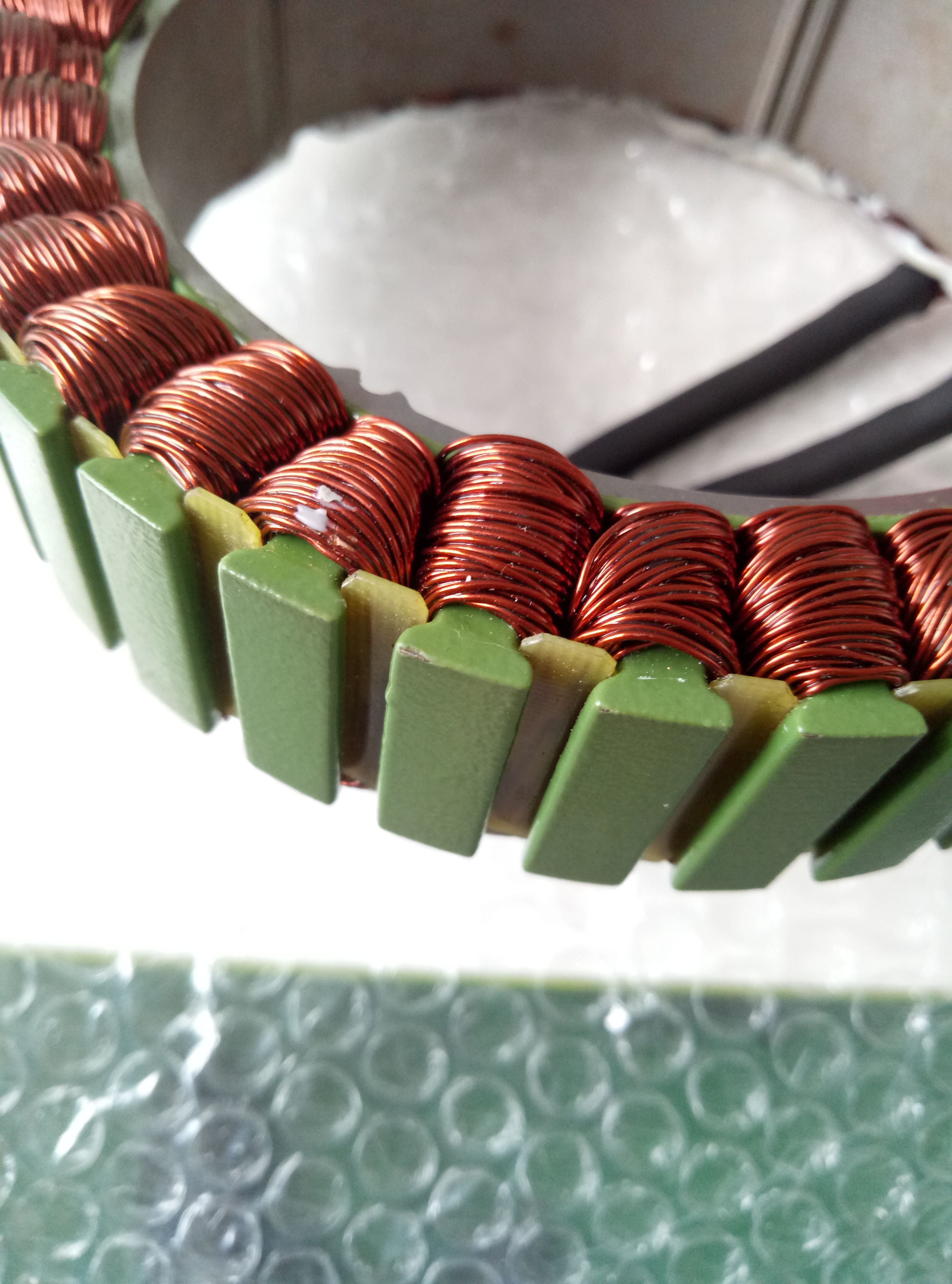

Slots Wedge： Yes
Temperature Sensor Installation： No
Exit Wires: Bare Enameled Magnetic Wires
Services: stator lamination, stator coating, Winding, coil varnish coating, tin soldering, heat-shrink tube package, Testing etc...
