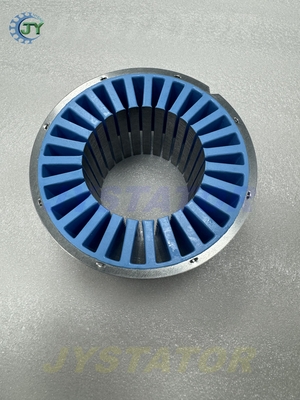

SolEpoxy DK7-0953M Epoxy Powder Coating Stators
DK7-0953M is Extremely stable, Class F rated insulation epoxy coating powder for electric motor armatures and stators and has been widely used to replace 3M 5230N Epoxy powder when 3M 5230N Stopped production since 2024;

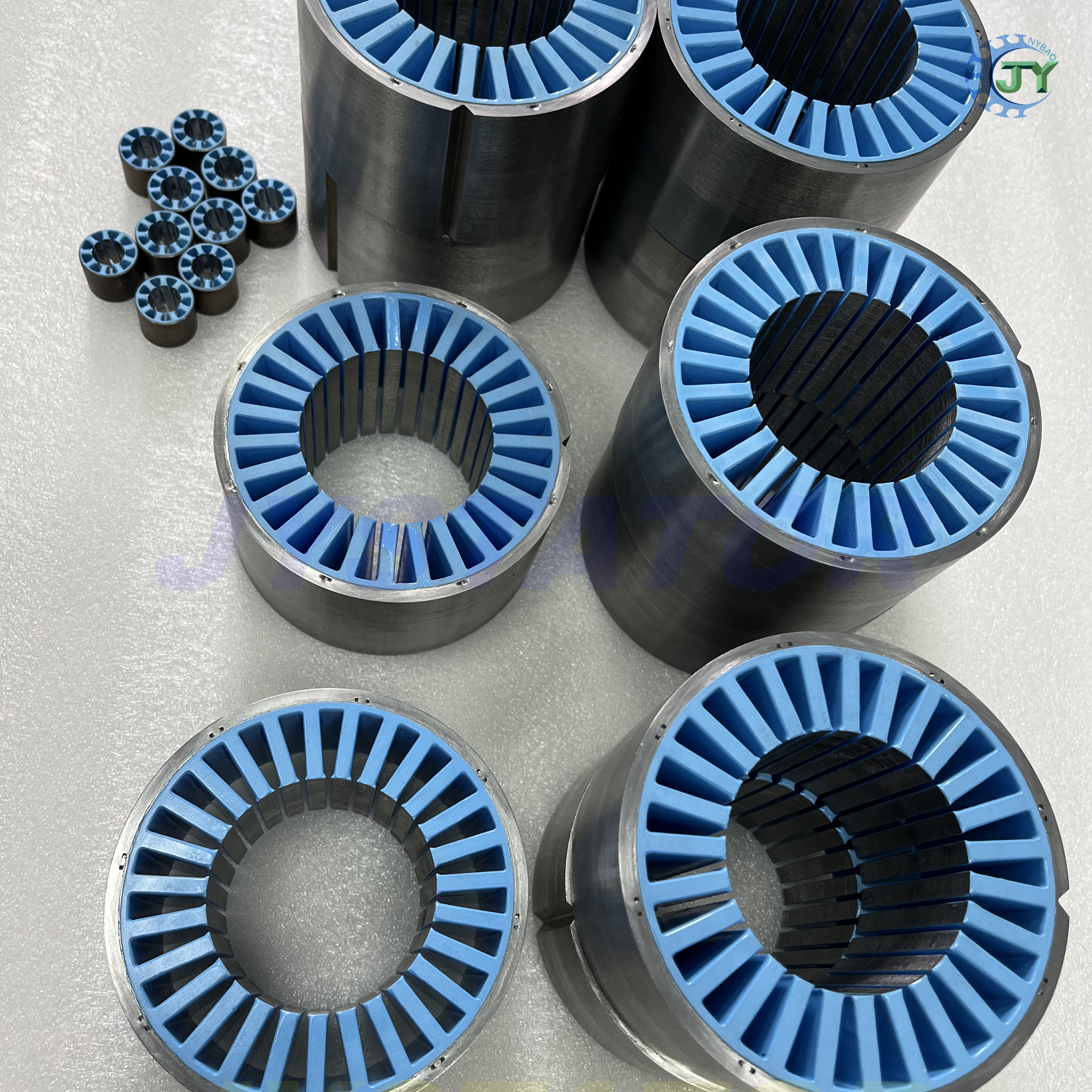

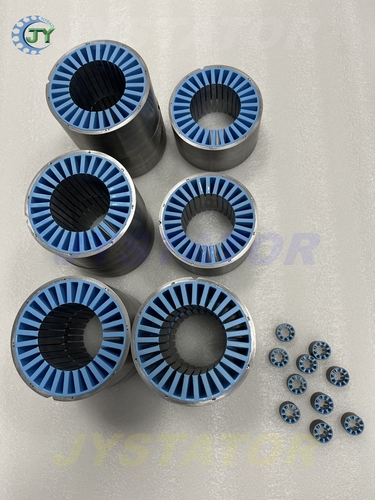

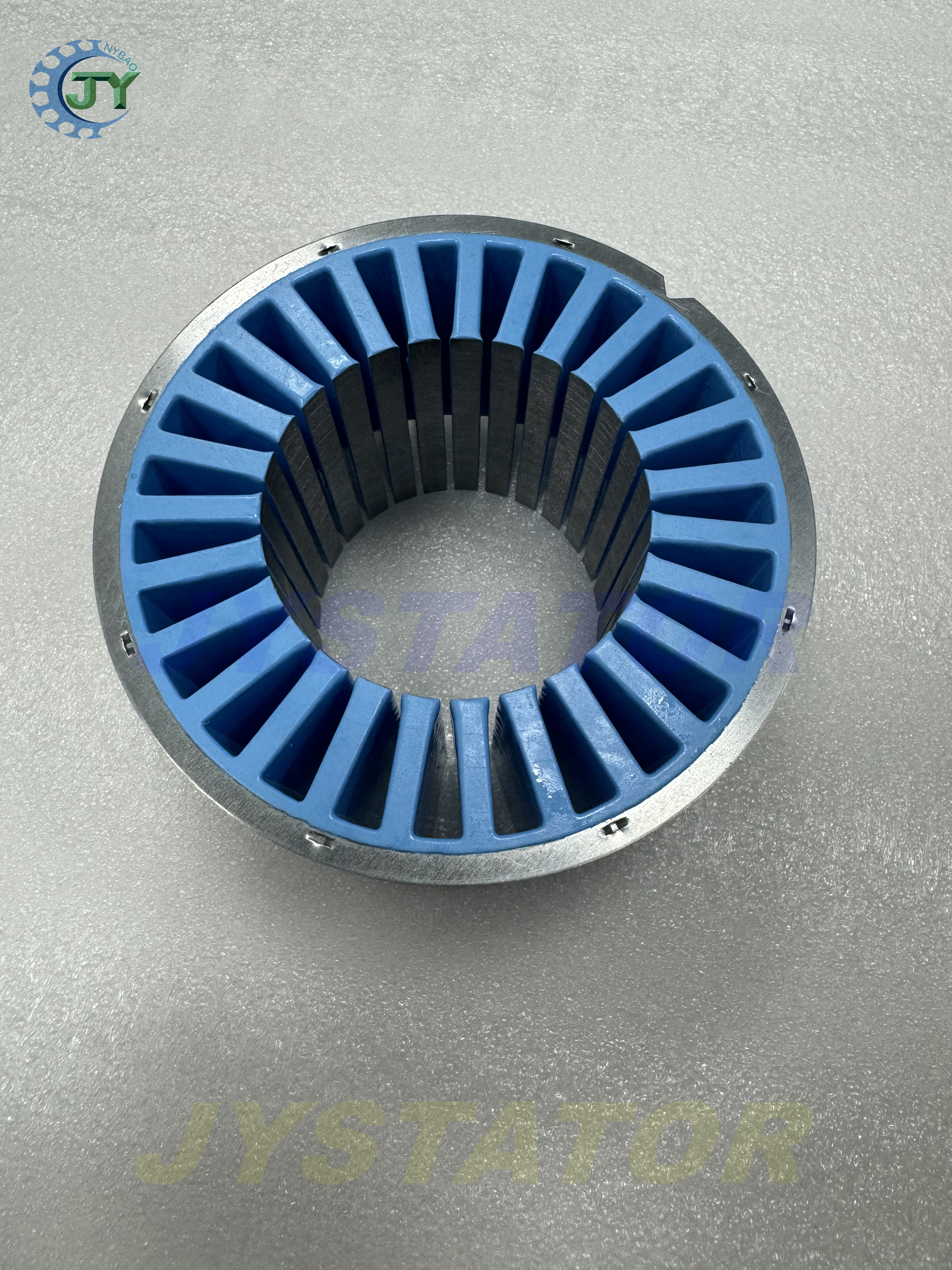

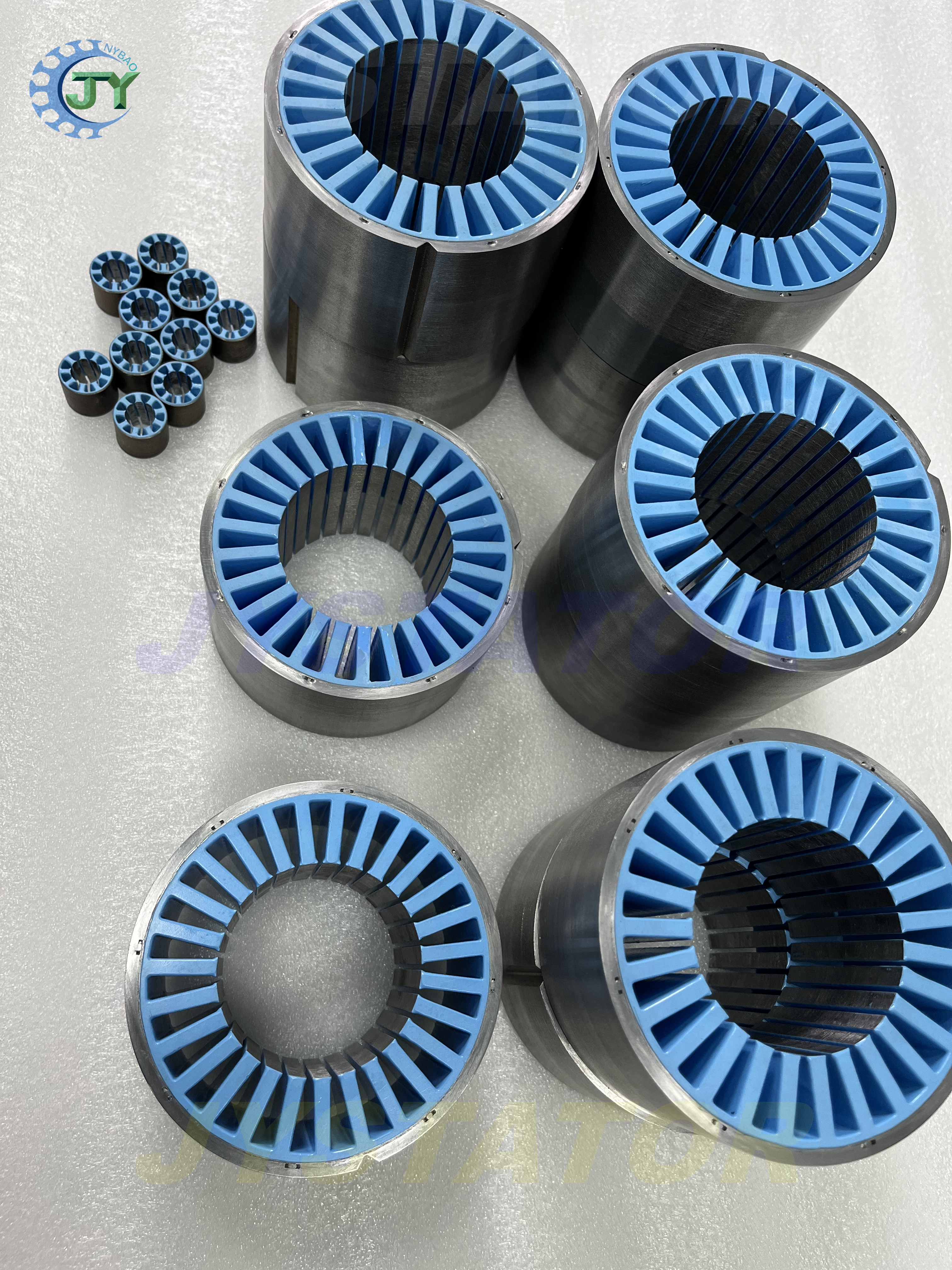

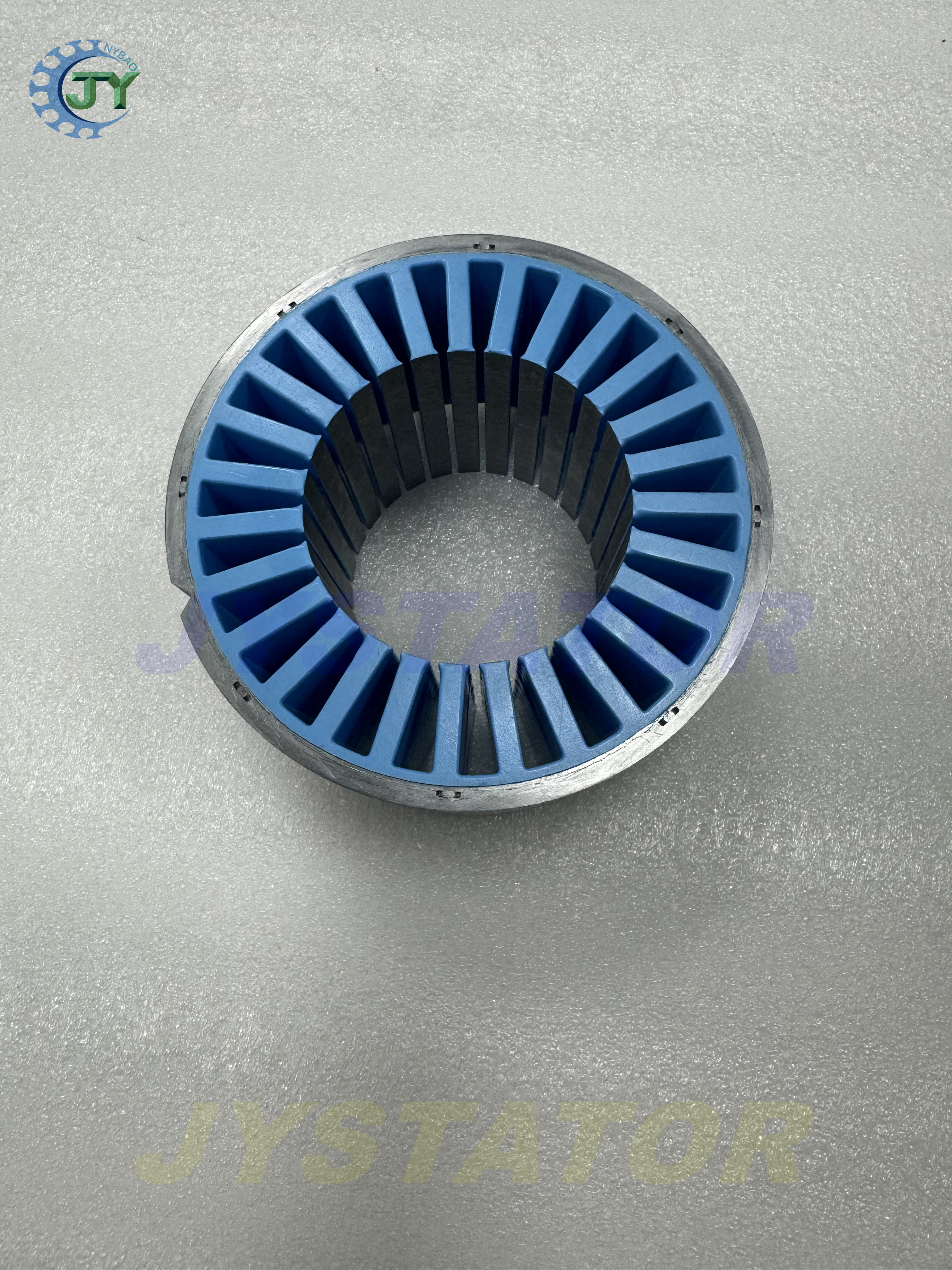

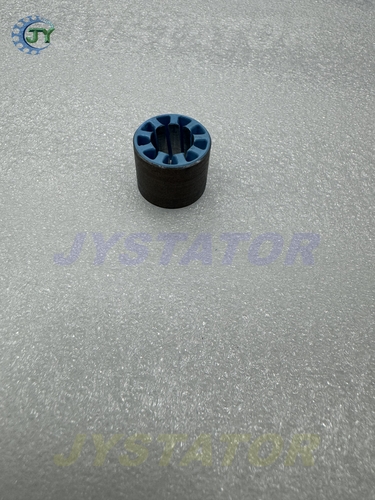

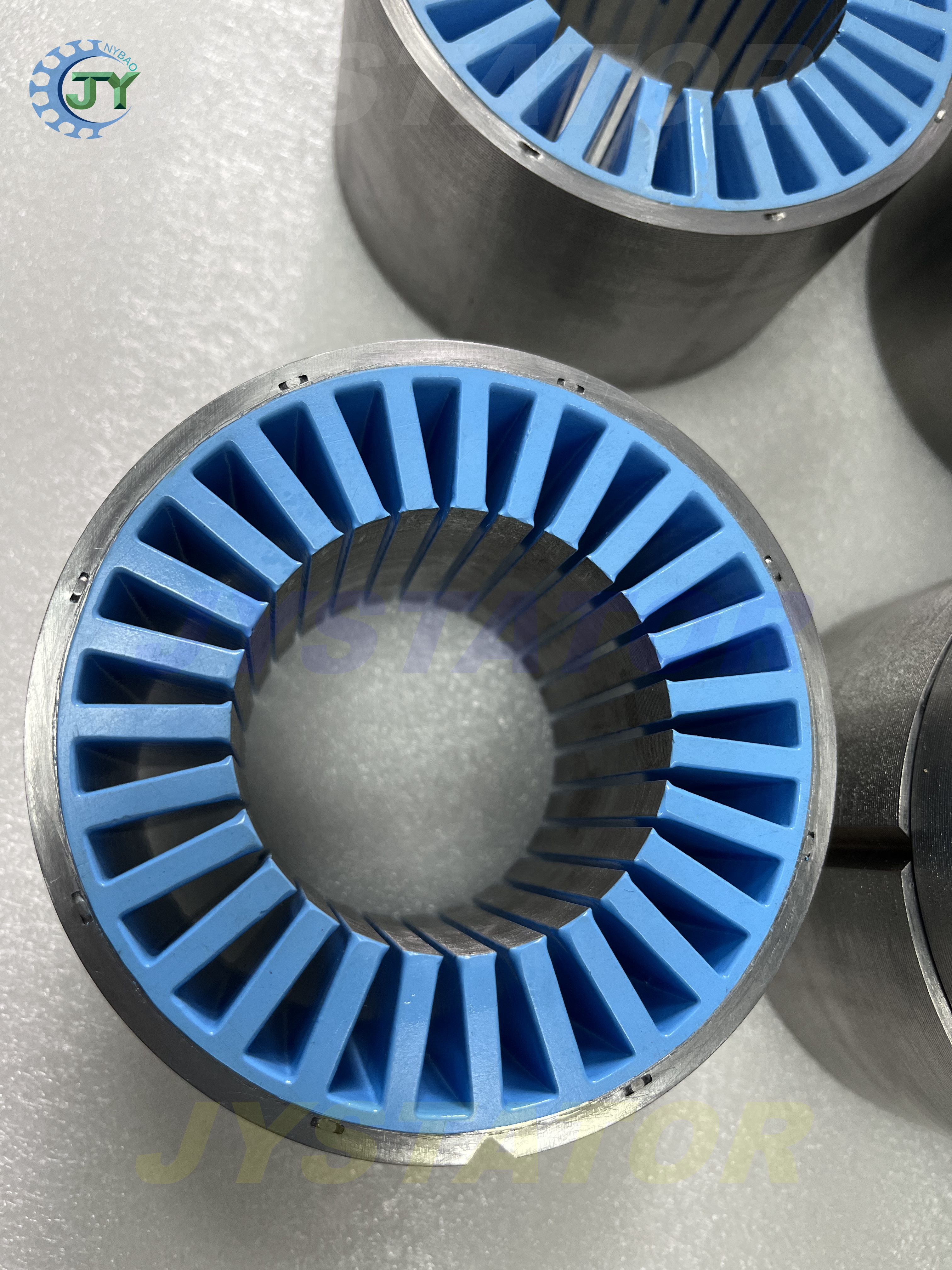

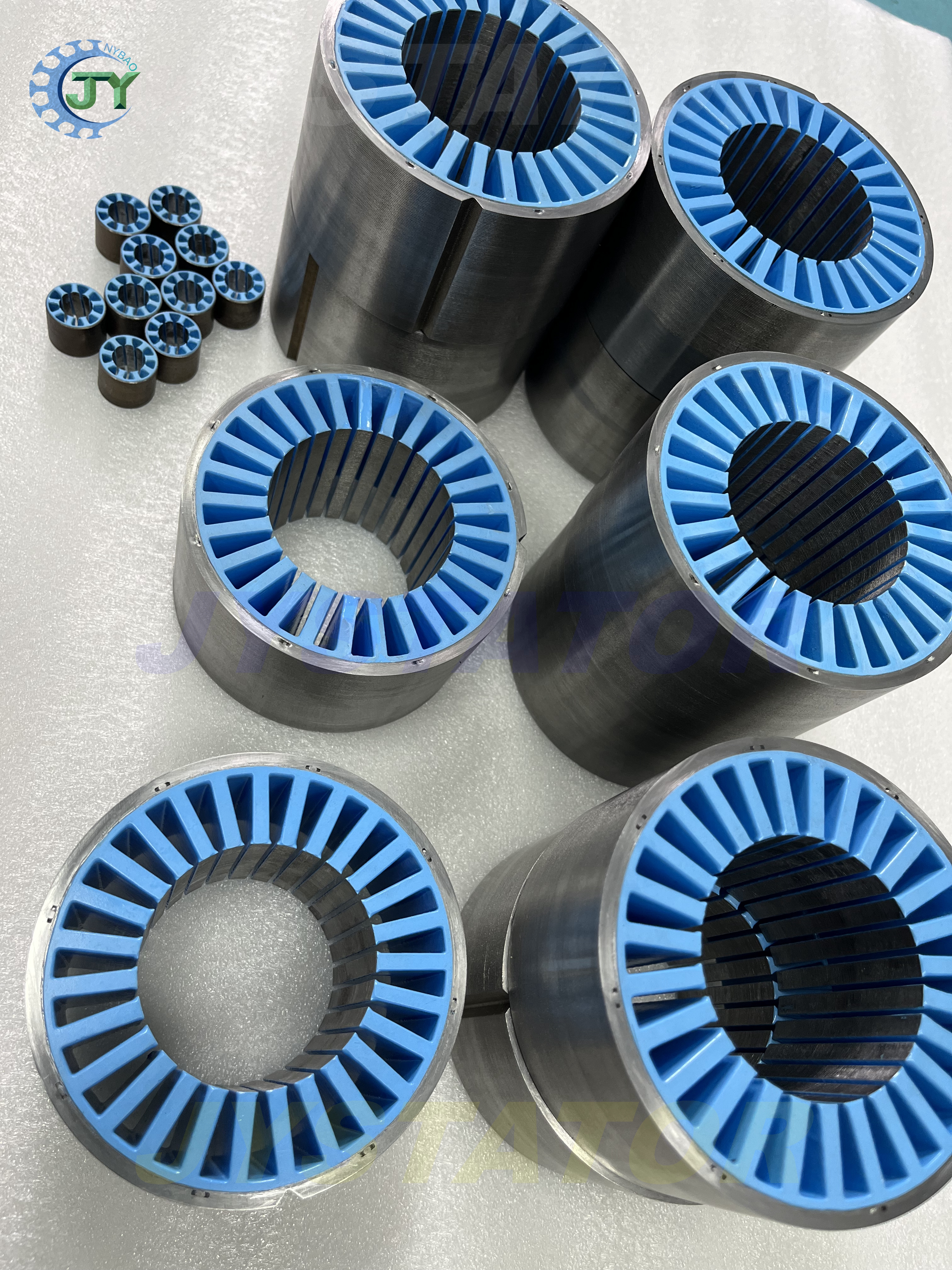

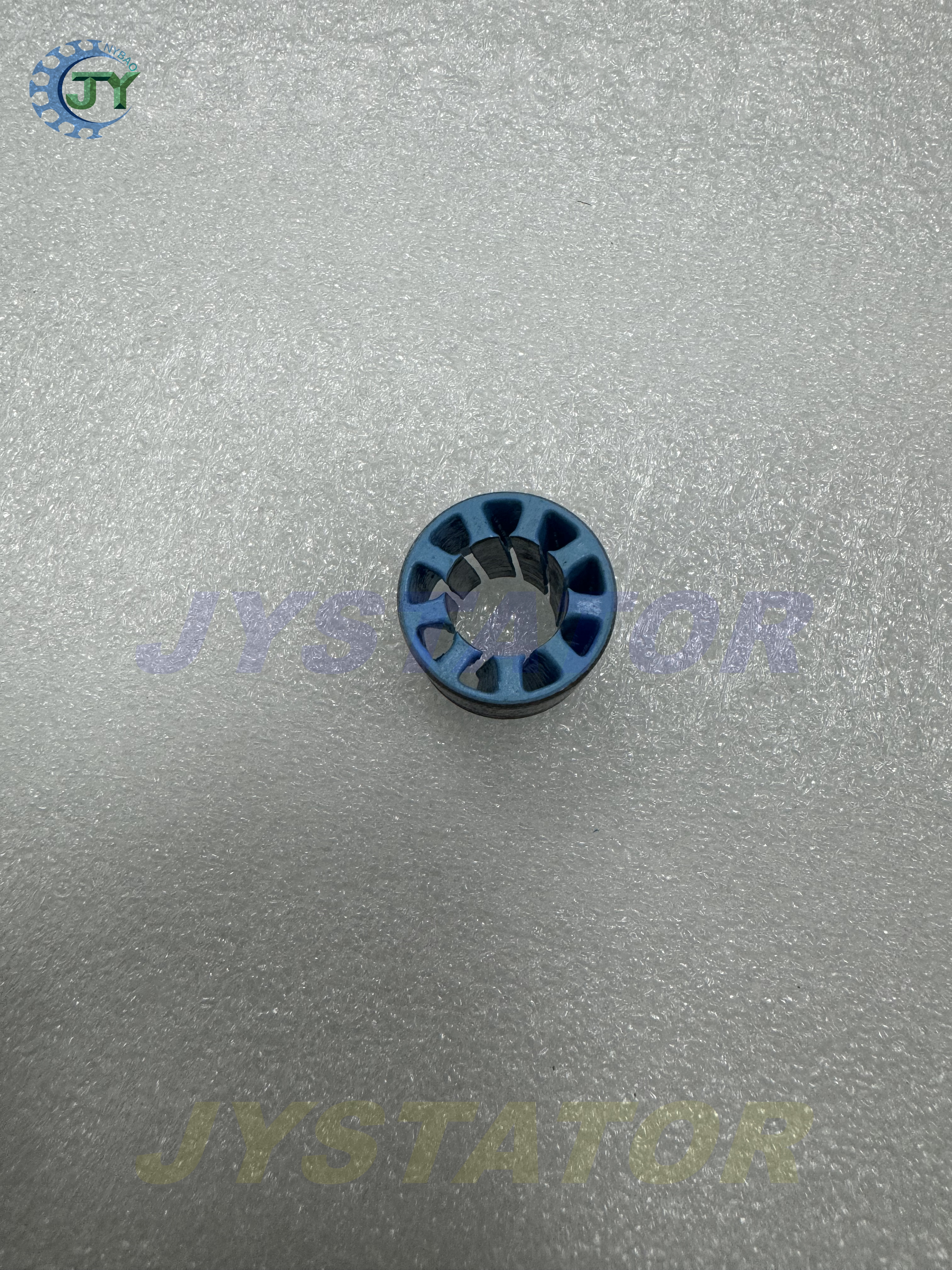

JYSTATOR Has common stock for DK7-0953M epoxy powder and can coat your stator core products to fufill your needs

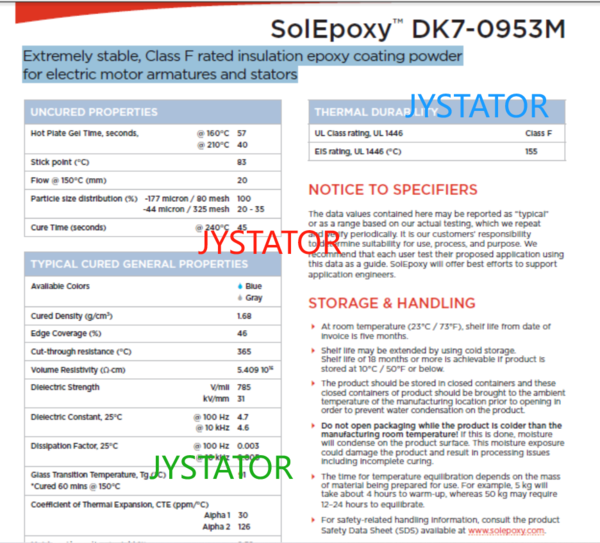

TYPICAL CURED GENERAL PROPERTIES
Available Colors S Blue
S Gray
Cured Density (g/cm3) 1.68
Edge Coverage (%) 46
Cut-through resistance (°C) 365
Volume Resistivity (Ω-cm) 5.409 1016
Dielectric Strength V/mil 785
kV/mm 31
Dielectric Constant, 25°C @ 100 Hz 4.7
@ 10 kHz 4.6
Dissipation Factor, 25°C @ 100 Hz 0.003
@ 10 kHz 0.005
Glass Transition Temperature, Tg (°C) 91
*Cured 60 mins @ 150°C
Coefficient of Thermal Expansion, CTE (ppm/°C)
Alpha 1 30
Alpha 2 126
Moisture Absorption (weight %) 0.32
*18 mil specimen for 24 hours @ 23°C
Closed Anvil Impact inch-lbs > 160
joules 18.1
Halogen-free yes
REACH / RoHS Compliant yes
